Data connectors integrate and augment network data from sources external to the network itself. They enable Forward Enterprise to retrieve, parse, and structure data using HTTP(S) GET requests. Data connectors can enhance visibility, improve analytics, and integrate external data sources into Forward Enterprise.

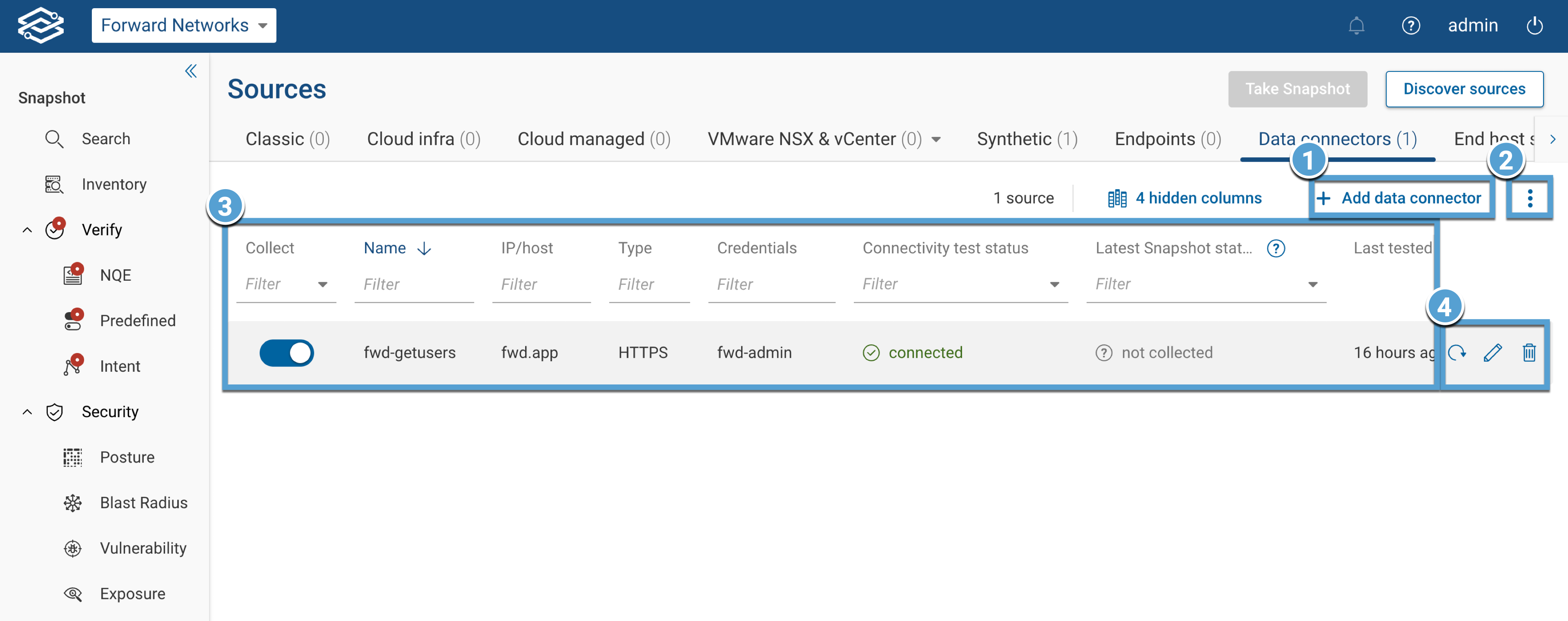

Navigating the Data Connectors page

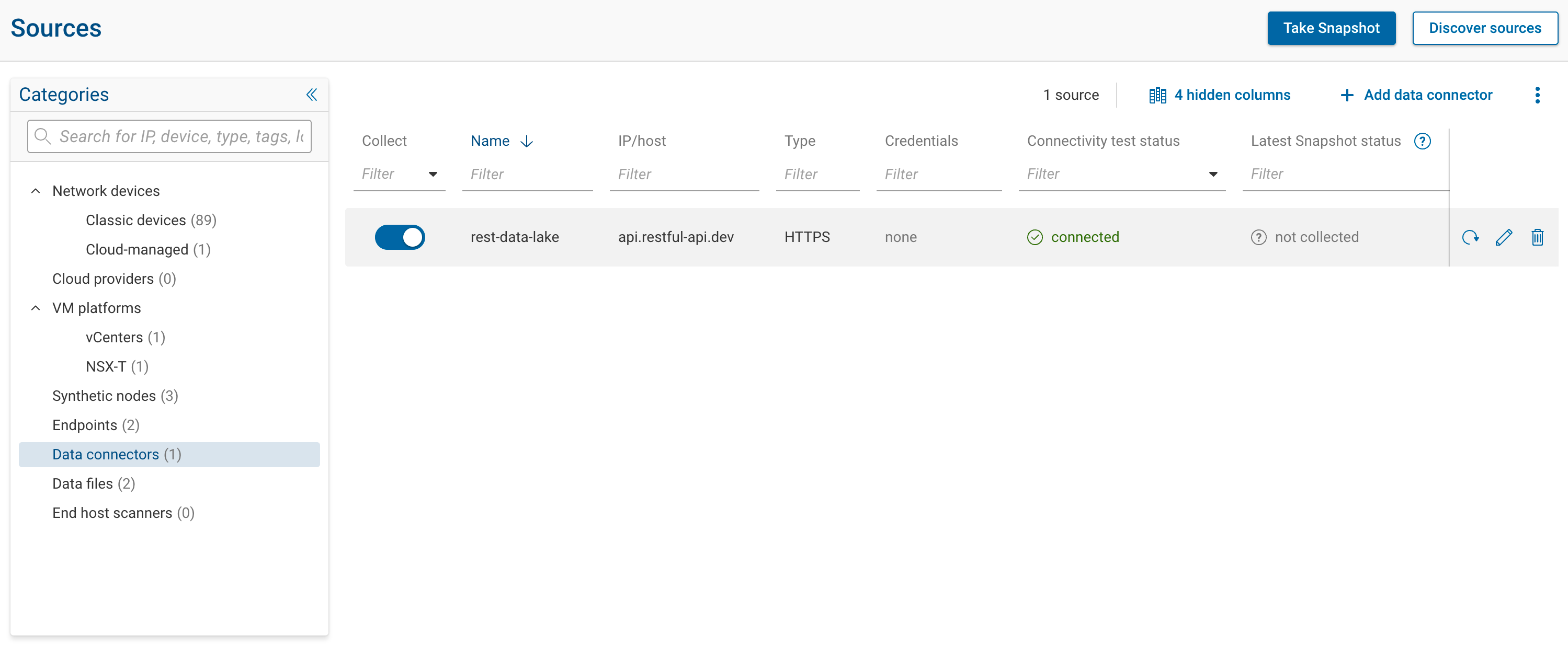

You can view and manage data connectors by navigating to the Sources page and selecting the Data connectors tab.

1. Add Data Connector: Launches the Add HTTP(S) Data Connector wizard.
2. Additional Options (Kebab Menu): Dropdown with option to reset column width.
3. Data Connectors Table: Displays a filterable list of data connectors with the following columns:
   • Collect: Toggle to enable or disable data collection.
   • Name: Displays the assigned name.
   • Tags: Assigned tags for categorization.
   • IP/host: The IP address or hostname of the data connector.
   • Type: The profile type assigned to the data connector.
   • Credentials: Credentials used for authentication.
   • Connection Test Status: Status of the last connection test.
   • Latest Snapshot Status: Status of the most recent snapshot.
   • Last Tested: Timestamp of the last connection test.
4. Per-Connector Actions: Data connector-specific actions available at the end of each row:
   • Test connection: Initiates a real-time connectivity test for the selected data connector.
   • Edit: Edit the selected data connector configuration.
   • Delete: Deletes the data connector.

Adding an HTTP(S) Data Connector

To add a data connector, select Add data connector to launch the wizard.

note

Forward supports data in JSON, CSV, and any text. Binary data is not supported.

The format is based on the content-type header. If the content type is set to application/json then Forward uses JSON format. If the content type is set to text/csv then Forward will use CSV format; otherwise, it uses text.

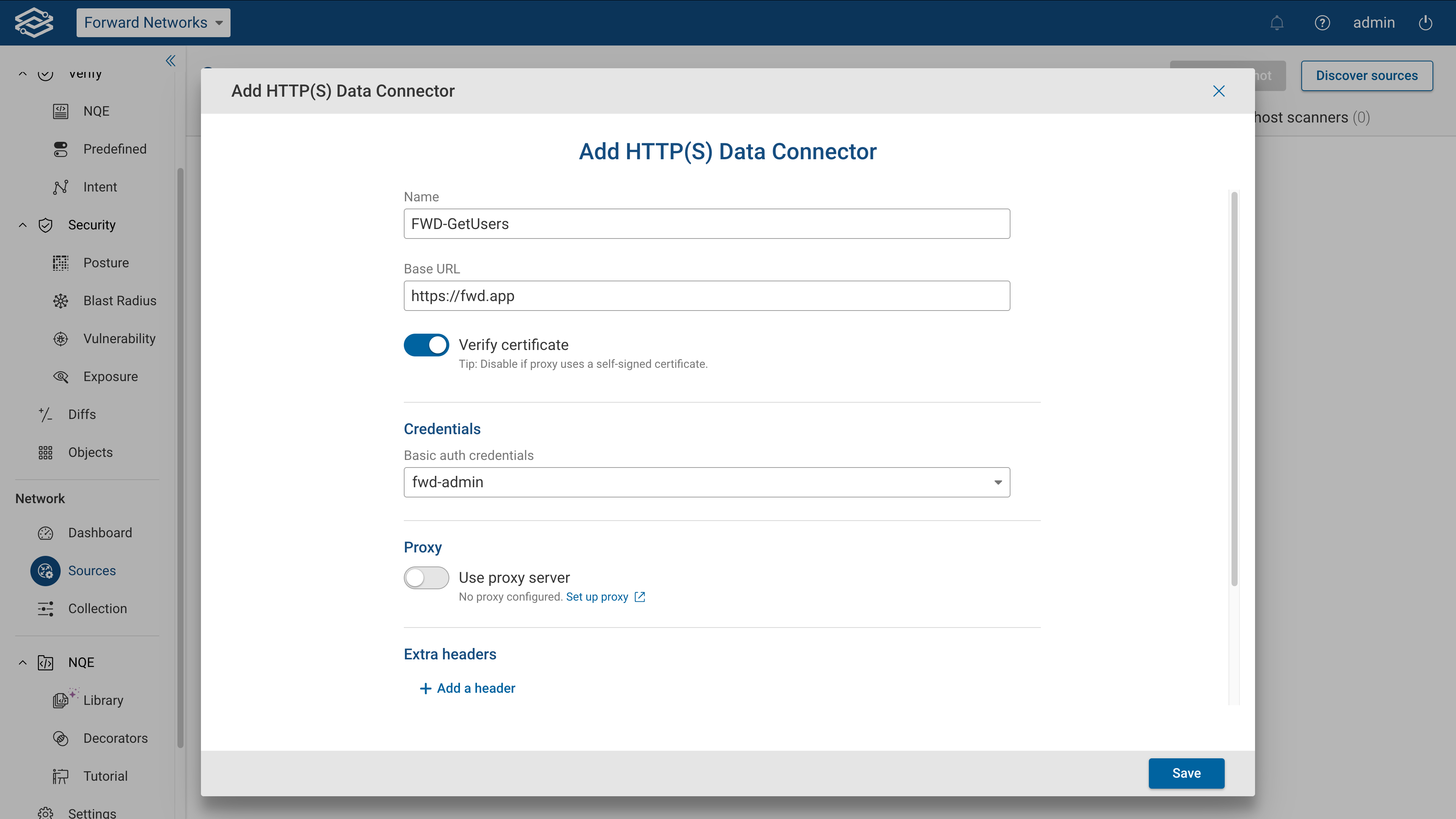

1. From the Add HTTP(S) Data Connector wizard, provide the following details: General Information
   • Name: Assign a name for the data connector.
   • Base URL: Specify the base URL for requests. Credentials
   • Basic auth credentials: Select or create credentials from the dropdown.
   • Use proxy server: Enable if a proxy is required. Select or create one from the list. Extra headers
   • Add extra headers: Define additional headers as Key/Value pairs. Endpoints
   • Add an endpoint: Select to assign endpoints to the data connector. There are two types to select from:
     • Static Endpoints: Uses a static URL that returns all data in one request.
     • Paginated Endpoints: Uses dynamic URLs for paginated data split up across one or more requests.
2. Once all endpoints have been added to the data connector, click Save.

Adding a static endpoint

A static endpoint uses a fixed URL that returns all data in a single request. This is useful for retrieving datasets that do not require multiple calls or pagination to be fully collected.

To configure static endpoint:

1. Provide a name, and select static as the endpoint type.

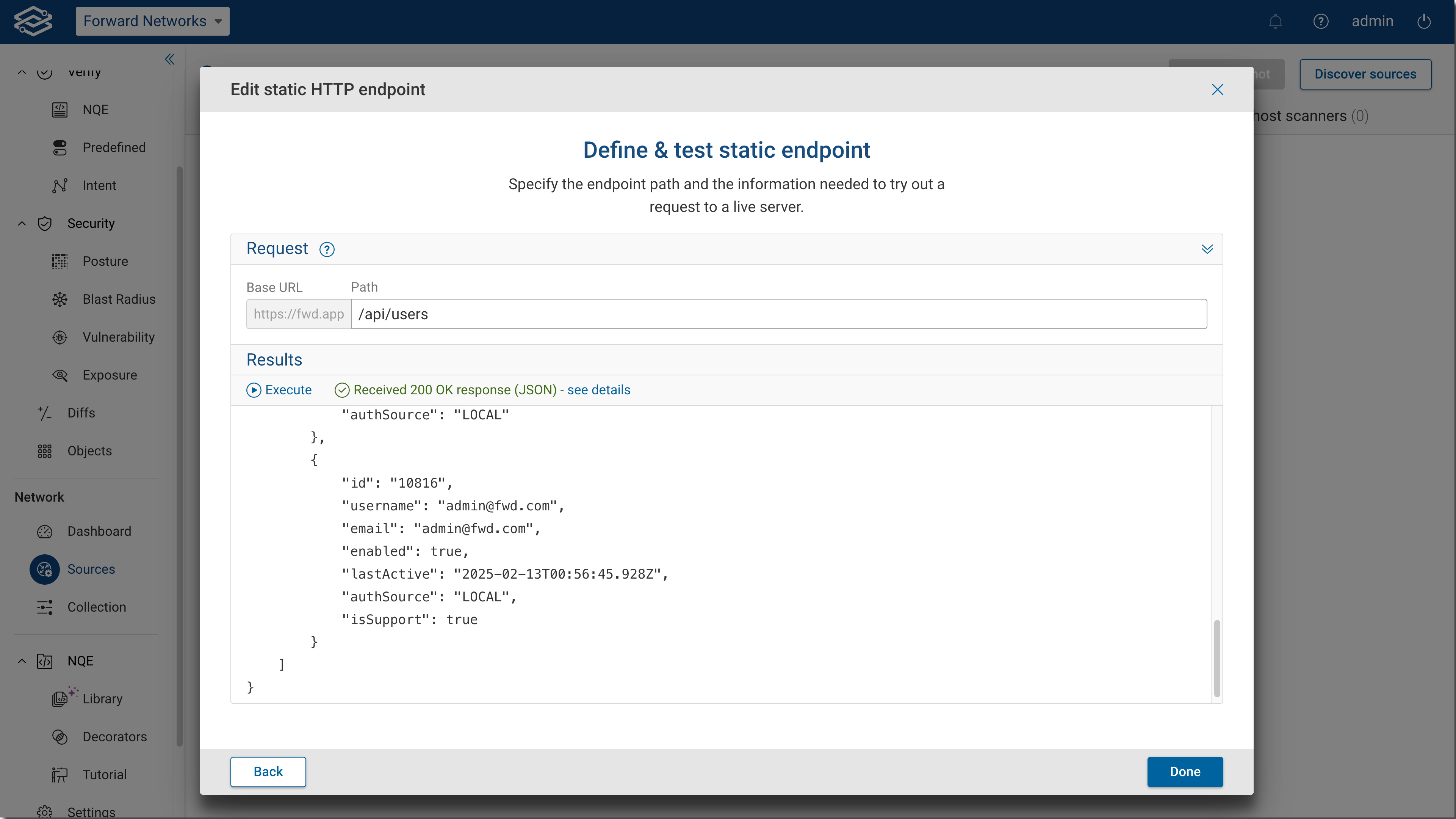

2. Enter the request path and click Execute to test connectivity. Results of the connectivity test will be displayed within the Results section. Additional information can be found by selecting see details.
3. Once the test succeeds, select Save.

Adding a paginated endpoint

A paginated endpoint is used when data is split across multiple pages, requiring multiple requests to retrieve the full dataset. Paginated data sources help manage large volumes of data efficiently.

To configure paginated endpoint:

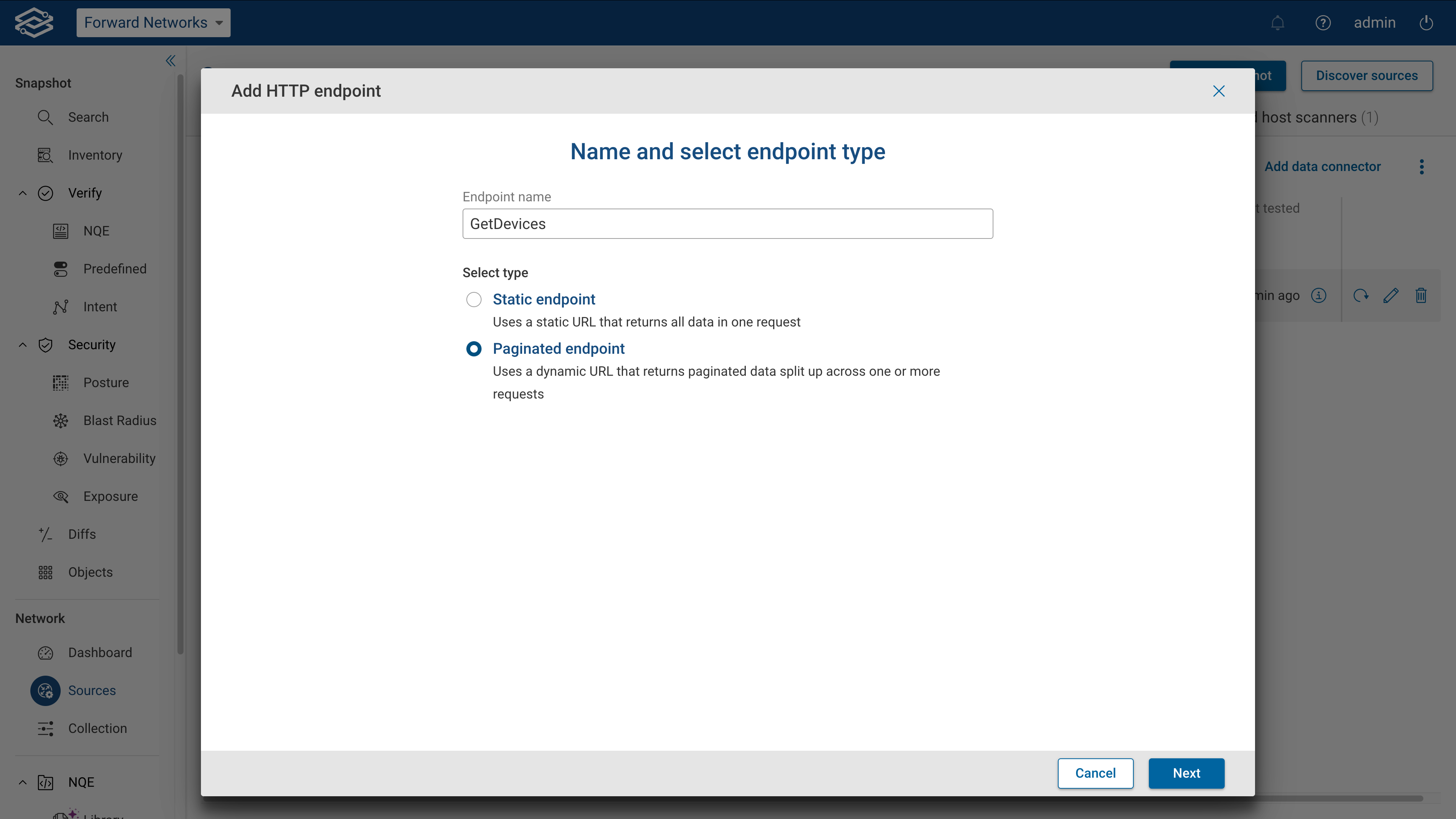

1. Provide a name and select paginated as the endpoint type.

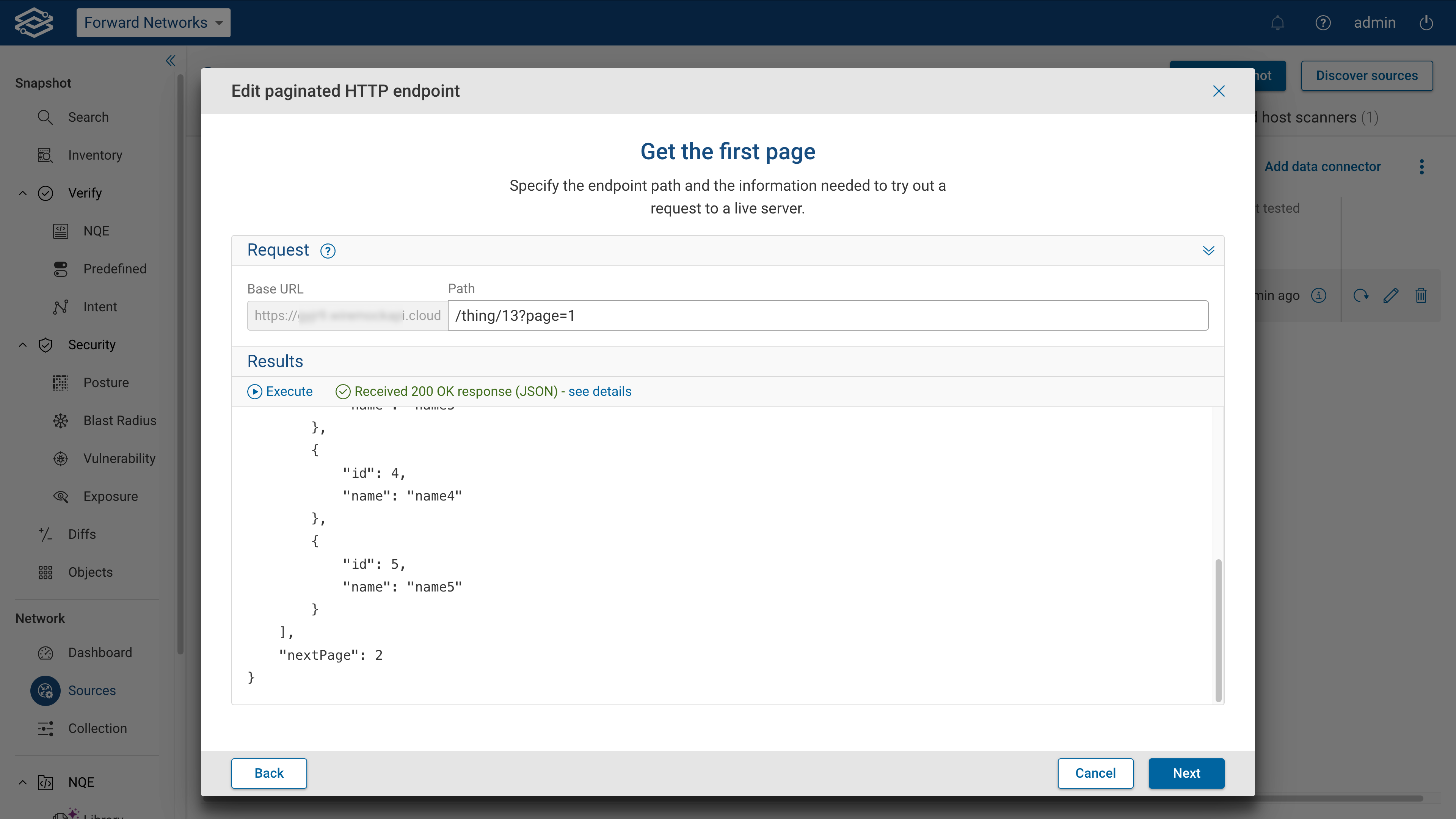

2. Enter the request path for the first page and click Execute to test connectivity. Results of the connectivity test will be displayed within the Results section. Additional information can be found by selecting see details.
3. Once the test succeeds, select Next.
4. Choose the pagination model type for getting the next page:
   • Offset pagination: Uses an offset and limit query parameters.
   • Parameter cursor pagination: Uses a parameter value in responses.
5. Define the pagination parameters, test the setup, and click Save.

Offset pagination

Offset pagination is a method where the request specifies an offset index and a limit to determine the number of results returned in each request. This approach is commonly used in APIs where data is stored in sequential order.

To configure offset-based pagination:

1. Select Offset-based pagination as the pagination model type, and provide the following:
   • Items Field: Field in the response data model that contains the paginated items.
   • Offset Parameter Name: Name of the offset parameter in query-string.
   • Offset Parameter Value: Define how the offset parameter value should be incremented for each subsequent page request.
     • Previous Offset + Length: This option uses the value of the selected Items field to calculate the next page.
     • Previous Offset + nextPage: This option uses the value of the nextPage in the response to calculate the next page.
     • Previous Offset + 1: This option uses the value of 1 to calculate the next page.
   • Max Number of Pages (optional): Define the maximum number of pages to be collected.
2. Test the setup and click Done if successful. Additional information for each result is available by selecting the see details icon located at the end of each row.
3. Select Done after completing a successful test to finish.

Parameter cursor pagination

Parameter cursor pagination uses a dynamically generated cursor value provided in the response to fetch the next set of data. This method is more efficient than offset pagination, as it avoids skipping records when data changes dynamically.

To configure parameter cursor pagination:

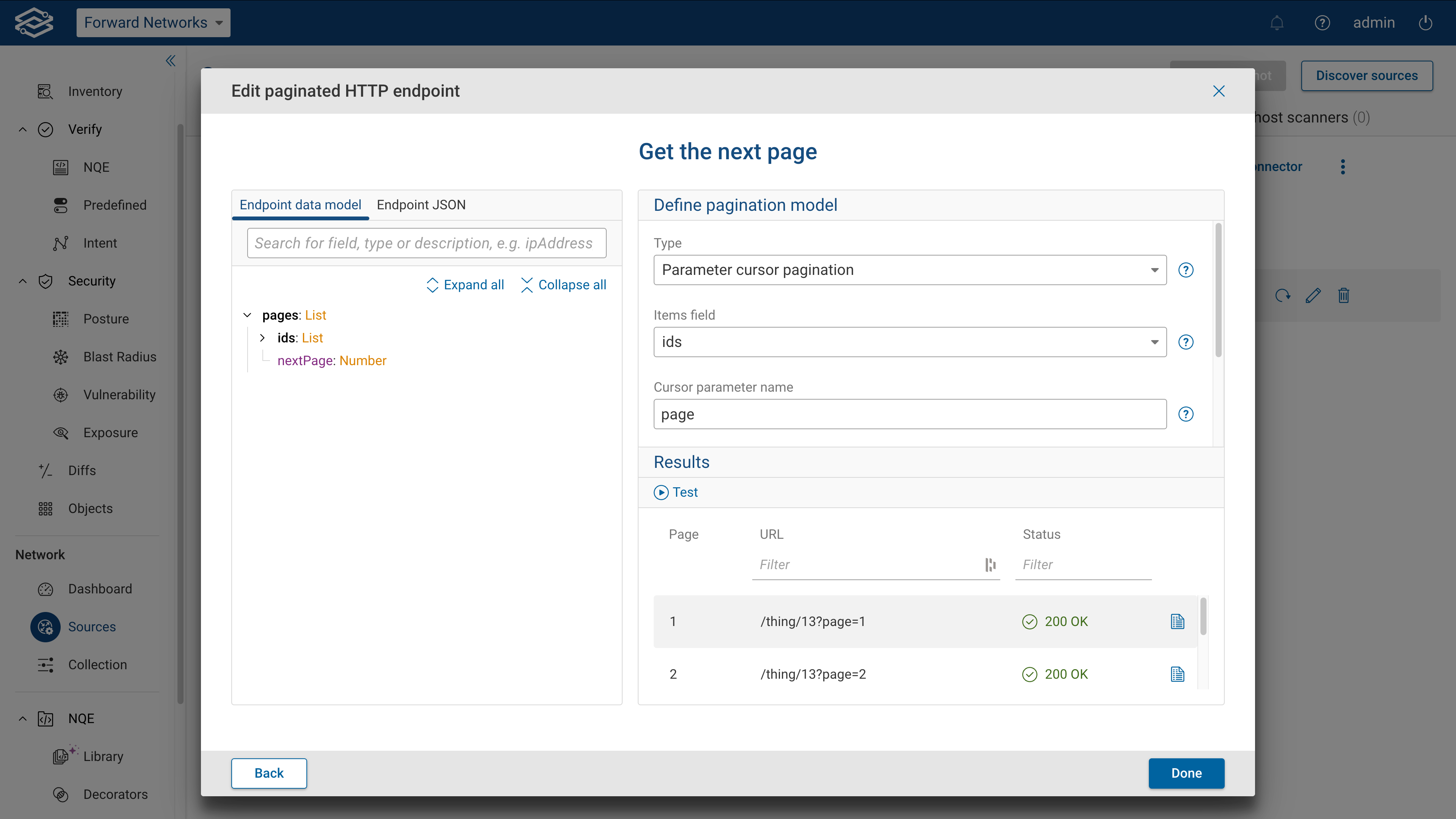

1. Select Parameter cursor pagination as the pagination model type, and provide the following:
   • Items field: Field in the response data model that contains the paginated items.
   • Cursor parameter name: Name of the cursor parameter in query-string.
   • Cursor parameter field: Specify the field from the response that includes the cursor or token.
   • Cursor parameter value: Define how the offset parameter value should be incremented for each subsequent page request.
   • Max number of pages (optional): Define the maximum number of pages to be collected.
2. Test the setup and click Done if successful. Additional information for each result is available by selecting the see details icon located at the end of each row.
3. Select Done after completing a successful test to finish.

Managing data connectors

Editing a data connector

To edit a connector, select the edit icon in the corresponding row.

Deleting a data connector

To delete a data connector select the delete in the corresponding row and confirm the deletion. Please note: deleting a data connector is irreversible.
