Checkpoint

General Information​

The Forward Collector will automatically collect VSX virtual instances assuming that the login credentials have administrative access to the firewall. No additional configuration is necessary in most cases.

Credentials​

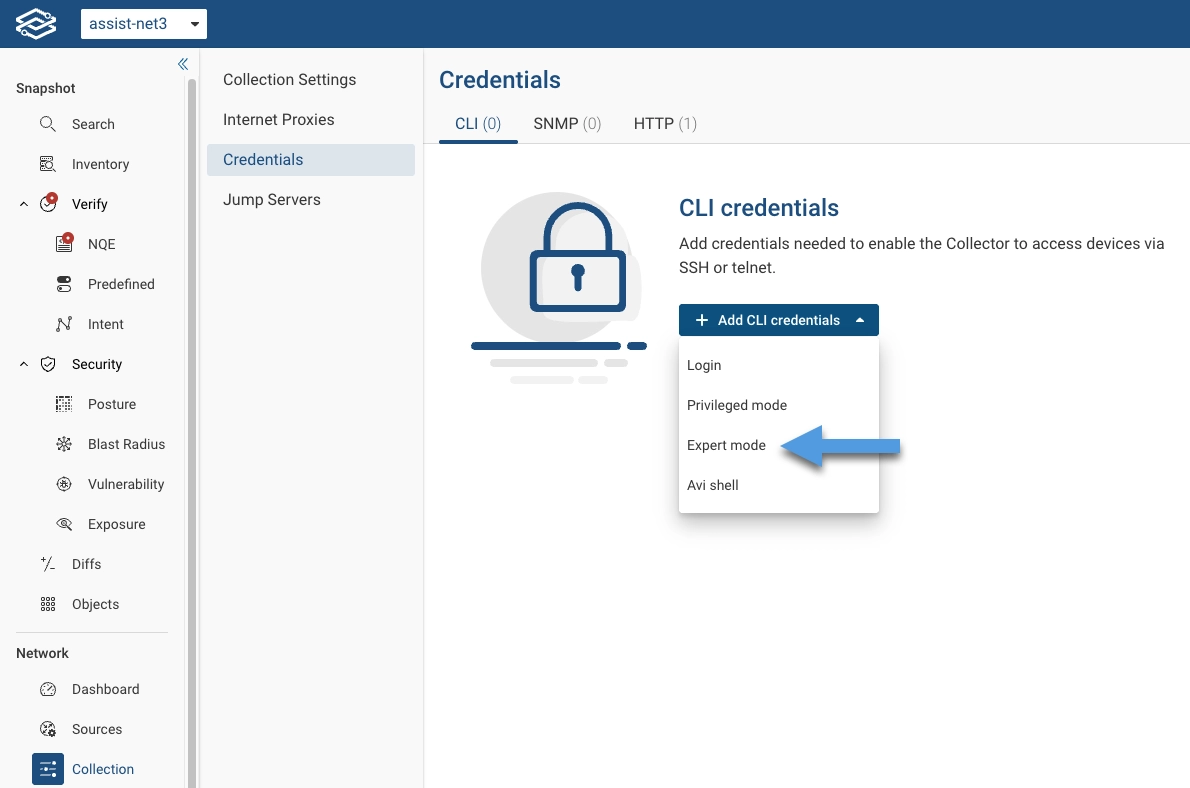

An expert/privileged mode or a non-expert mode (Gaia shell) password must be supplied in the credentials to collect from Checkpoint firewalls. However, non-expert CLI doesn't have native commands to collect some data like User Identity (user-id) and bridge domain (bridge).

Starting with release 23.7, Forward provides the ability to collect user-id and bridge information via non-expert mode by expanding the set of available commands in non-expert CLI. This applies to both "Checkpoint gateway with manager" and "Checkpoint non-expert mode".

note

You need to do it, only if you are using these features and if you cannot provide expert mode access.

Collect User Identity in non-expert mode​

The expert/privileged mode command pdp monitor all is used to get the user/IP association.

To get this result from Gaia shell (non-expert mode), you can create an additional shell command alias for the expert mode command.

  • Step 1: SSH into the Checkpoint device and run expert to enable expert mode
  • Step 2: Check the full path of the command
[Expert@checkpoint:0]# which pdp
/opt/CPsuite-R81.10/fw1/bin/pdp
  • Step 3: Add a command alias named pdp for this path and save the config
checkpoint> add command pdp path /opt/CPsuite-R81.10/fw1/bin/pdp description "PDP monitor"
Command (pdp) was added.

checkpoint> save config

Collect Bridge Domain in non-expert mode​

If a Checkpoint device has a bridge interface (for example for a VSX device with the virtual switches), Forward needs to collect the command brctl showmacs $iface.

To get this result from Gaia shell (non-expert mode), you can create an additional shell command alias for the expert mode command.

  • Step 1: SSH into the Checkpoint device and run expert to enable expert mode
  • Step 2: Check the full path of the command
[Expert@checkpoint:0]# which brctl
alias brctl='/bin/brctl_start'
/bin/brctl_start
  • Step 3: Add a command alias named brctl for this path and save the config
checkpoint> add command brctl path /bin/brctl_start description "Bridge control"
Command (brctl) was added.

checkpoint> save config

Collect using Checkpoint non-expert mode​

Starting with release 24.7, Forward provides the ability to collect without expert mode access by expanding the set of available commands in the non-expert CLI using the Checkpoint non-expert mode connection type. This requires adding the following command aliases on each Checkpoint device that will be collected using this connection type.

Create pdp command alias​

  • Step 1: SSH into the Checkpoint device and run expert to enable expert mode
  • Step 2: Check the full path of the command
[Expert@checkpoint:0]# which pdp
/opt/CPsuite-R81.10/fw1/bin/pdp
  • Step 3: Add a command alias named pdp for this path and save the config
checkpoint> add command pdp path /opt/CPsuite-R81.10/fw1/bin/pdp description "PDP monitor"
Command (pdp) was added.

checkpoint> save config

Create brctl command alias​

  • Step 1: SSH into the Checkpoint device and run expert to enable expert mode
  • Step 2: Check the full path of the command
[Expert@checkpoint:0]# which brctl
alias brctl='/bin/brctl_start'
/bin/brctl_start
  • Step 3: Add a command alias named brctl for this path and save the config
checkpoint> add command brctl path /bin/brctl_start description "Bridge control"
Command (brctl) was added.

checkpoint> save config

Create env command alias​

  • Step 1: SSH into the Checkpoint device and run expert to enable expert mode
  • Step 2: Check the full path of the command
[Expert@checkpoint:0]# which env
/bin/env
  • Step 3: Add a command alias named env for this path and save the config
checkpoint> add command env path /bin/env description "Environment"
Command (env) was added.

checkpoint> save config

Create cat command alias​

  • Step 1: SSH into the Checkpoint device and run expert to enable expert mode
  • Step 2: Check the full path of the command
[Expert@checkpoint:0]# which cat
/bin/cat
  • Step 3: Add a command alias named cat for this path and save the config
checkpoint> add command cat path /bin/cat description "Cat"
Command (cat) was added.

checkpoint> save config
