Device Credentials

Depending on the Forward platform deployment method, credentials are stored in different ways:

  • In on-premises deployments, credentials are stored within the master node.
  • In SaaS deployments:
    • For updated collectors (Post-24.10), collection secrets in device credentials are encrypted using AES-256 and securely stored, and all the non-sensitive information in device credentials are stored unencrypted onfwd.app. Collectors do not store credentials locally; instead, they retain an encryption key, which is used to decrypt the credentials during collector operations.
    • For legacy collectors, collection secrets in device credentials are stored locally on the collector, specifically in the conf/private sub-directory in the installation path. If you uninstall a legacy collector without backing up the credentials, they will be permanently lost.

Credentials can be configured directly using the Credentials Page or when adding/importing device(s) to the inventory.

Add Credentials via Credentials page​

To add credentials from the Credentials page, go to Collection > Credentials, then select one of the following tabs: CLI, SNMP, or HTTP.

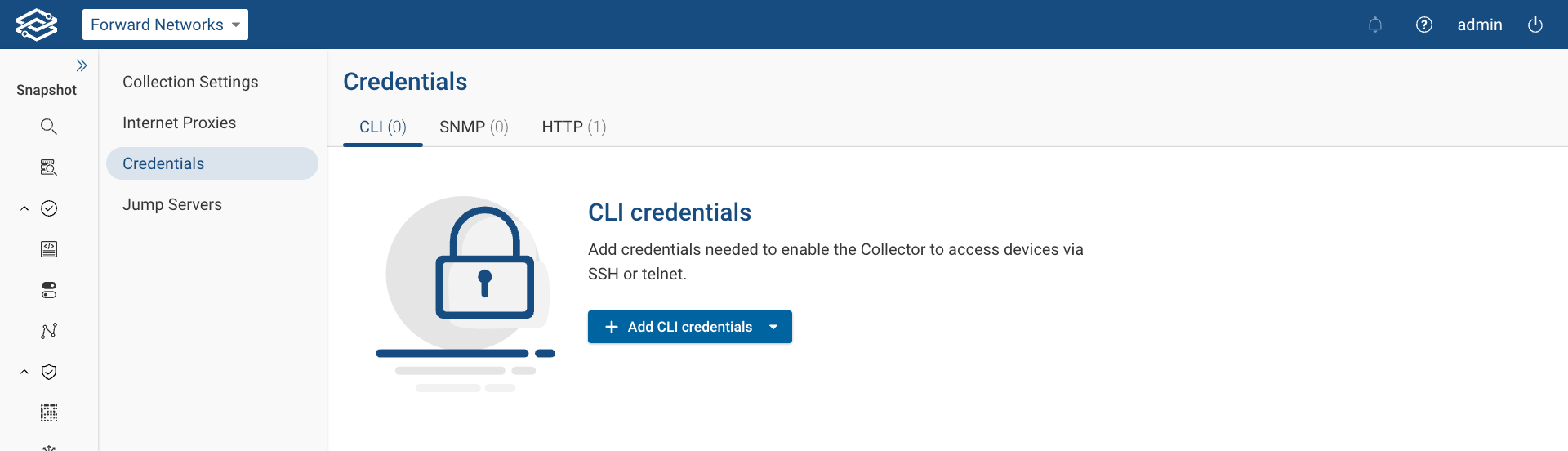

Add Credential

tip

Once the credentials are added, a Connectivity Test might have to be performed to auto-associate appropriate network devices with their respective credential.

CLI Credentials​

CLI credentials are used to access network devices via a command-line interface (SSH or telnet):

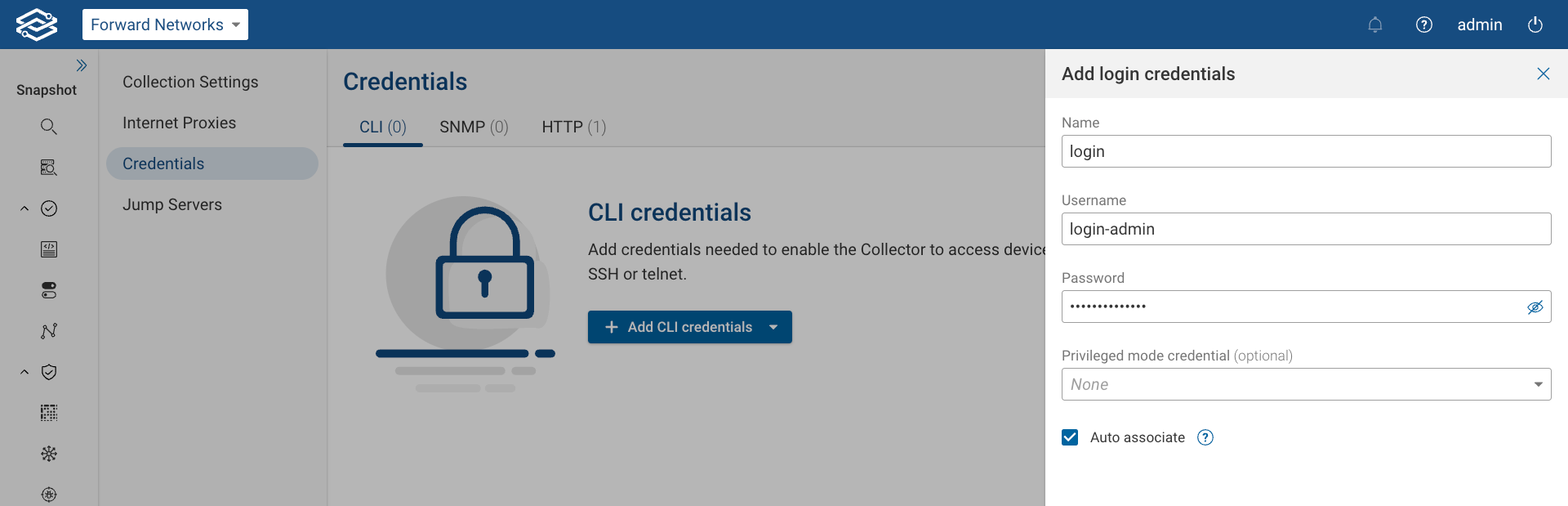

  • Login: Provides basic access to the device CLI using a username and password. Add CLI Login Credentials

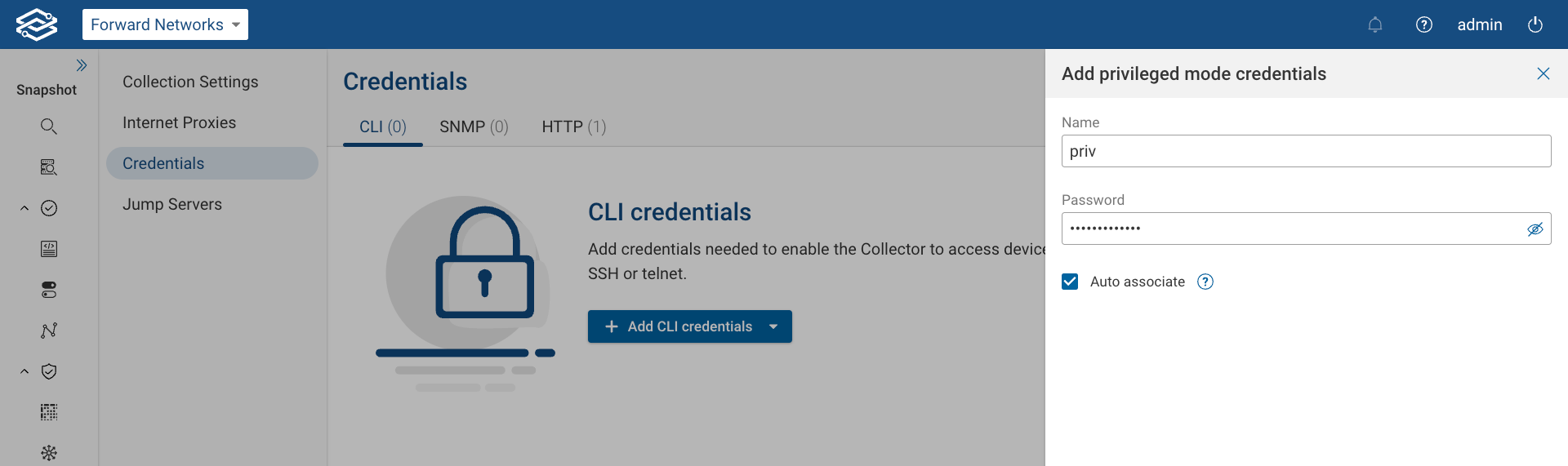

  • Privileged mode: Provides access to the operational state with the highest priority. Privileged mode enables the system to access all device configurations and state commands. Add CLI Privileged Mode Credentials

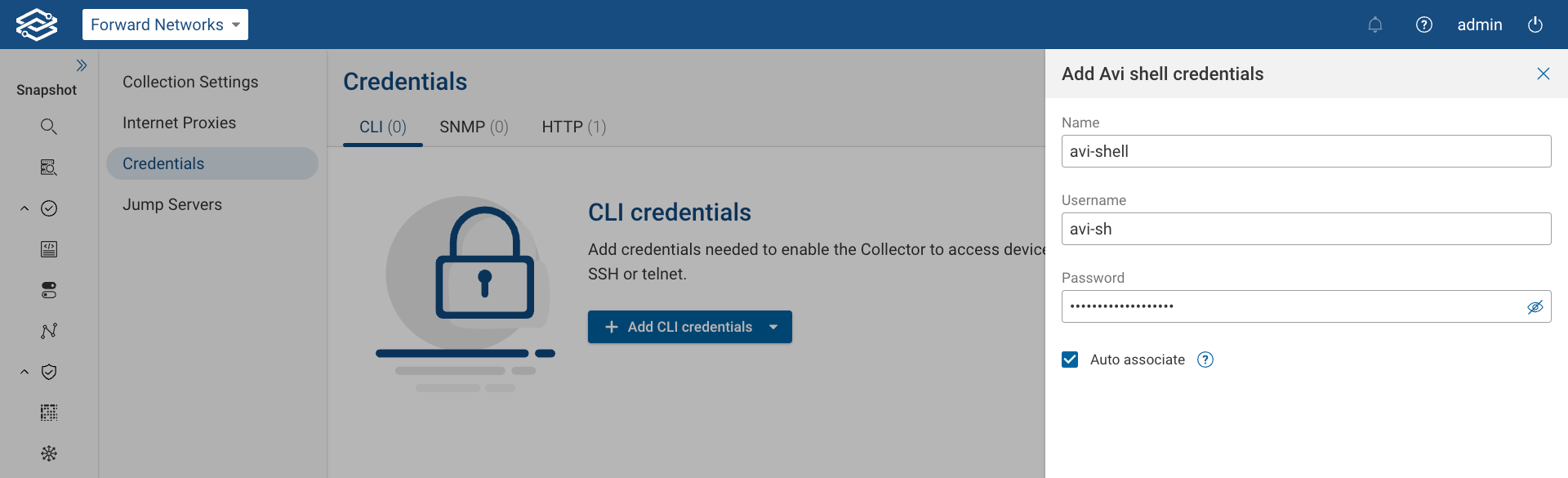

  • Avi shell: Enables access to the Avi Vantage CLI Shell on Avi platforms. Add CLI AVI shell Credentials

SNMP Credentials​

SNMP credentials are used for polling device performance metrics, discovering devices, and accessing (custom) SNMP network endpoints:

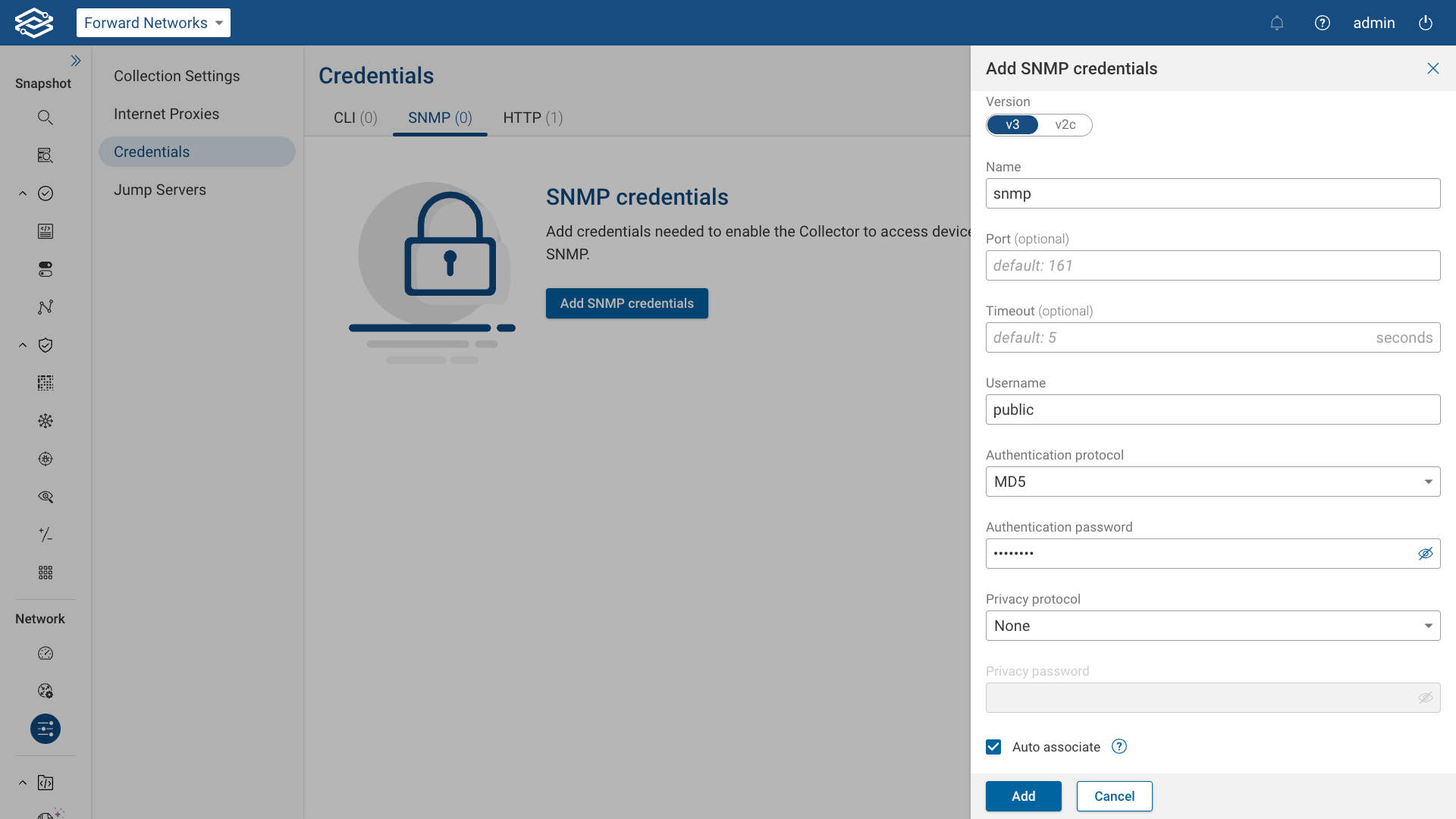

  • SNMP: Enables collection of basic device information and performance metrics using SNMP OIDs (object identifiers). Add SNMP Credentials For more details, check out the Performance data collection documentation.

HTTP Credentials​

HTTP credentials are used to access device APIs and web interfaces:

  • Login: Provides basic HTTP access to the device interface using a username and password. Add HTTP Login Credentials

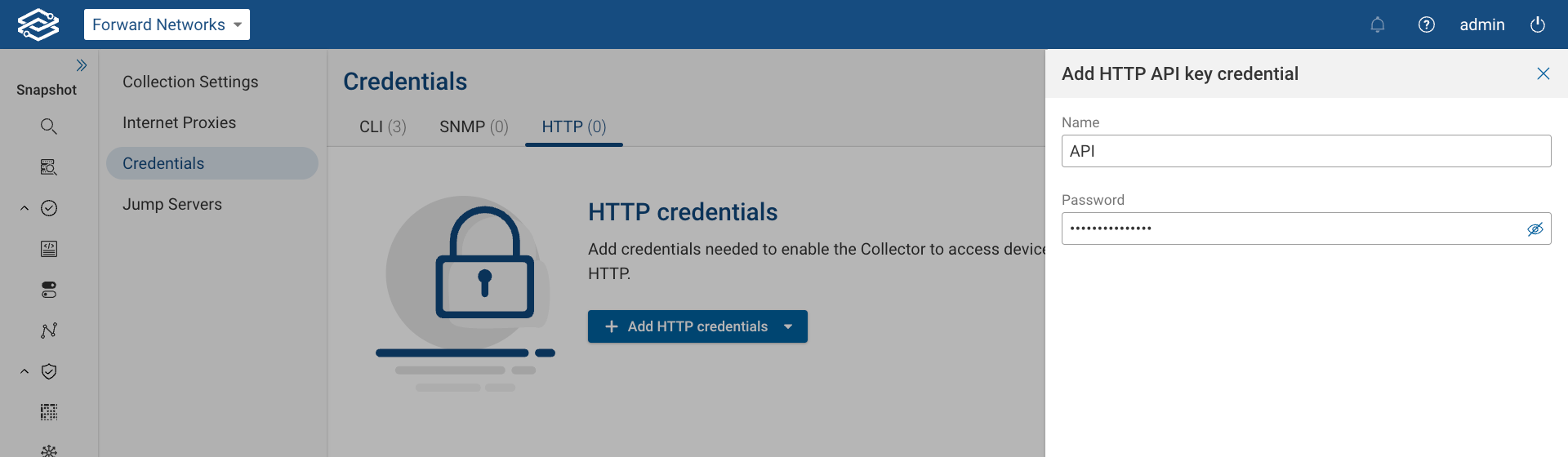

  • API key: Enables the Collector to authenticate to devices that require an API key. Add HTTP API key Credentials

Adding Credentials Through Devices Wizard​

Credentials can also be added during the device onboarding process in the Devices wizard.

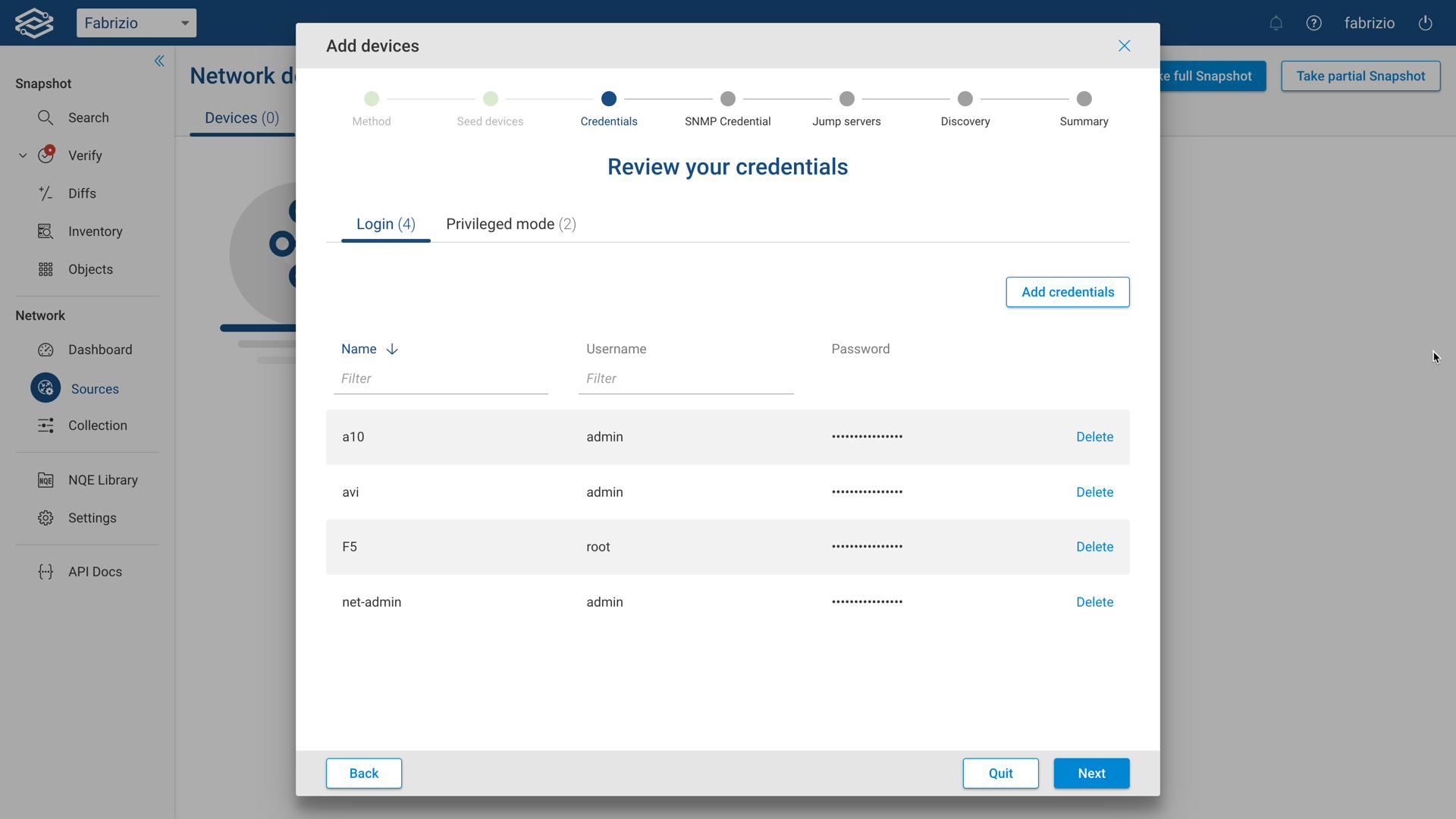

Add Credentials Through Import Devices Wizard

tip

In Forward on-premises deployments, deleting a Network deletes the device credentials as well.
However, in Forward SaaS deployments, when a Network is deleted, all the references to the device credentials are removed from the Forward SaaS but the credentials are not deleted from the Forward Collector installed on-premises. They stay in a file in the conf/private sub-directory in the installation path.
