Changing IP Address of a Node

danger

This is a disruptive procedure. While data loss is not expected, it is strongly recommended take a backup of the application data before proceeding.

Single-node deployments​

Configure IP address on the host​

Base version v16.1.0 and above:​

  • Launch fwd-utility and follow the steps shown below, to configure the IP address
    fwd-cluster
    Forward Cluster> host set ip static <IP_CIDR> gateway <GATEWAY_IP>
    Forward Cluster> apply

Base version v16.0.0 and below:​

  • We will use nmtui (Network Manager Text User Interface) to update the IP address of the VM. To configure a network interface IP address, start by invoking the nmtui tool.

    sudo nmtui

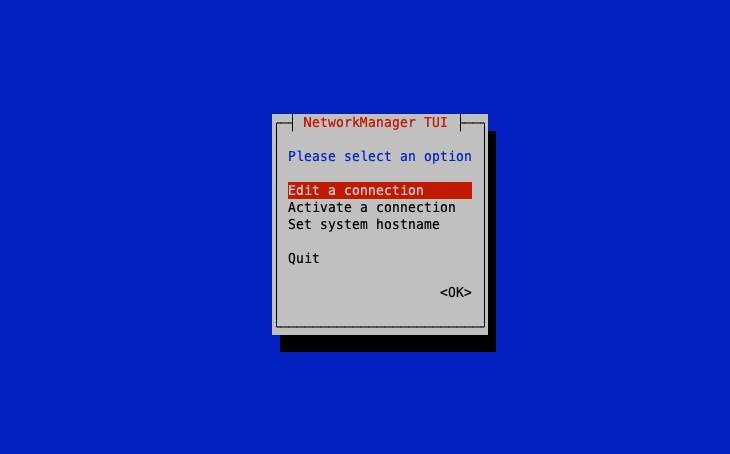

  • Select the first option ‘Edit a connection’ and hit ENTER.

Location Map

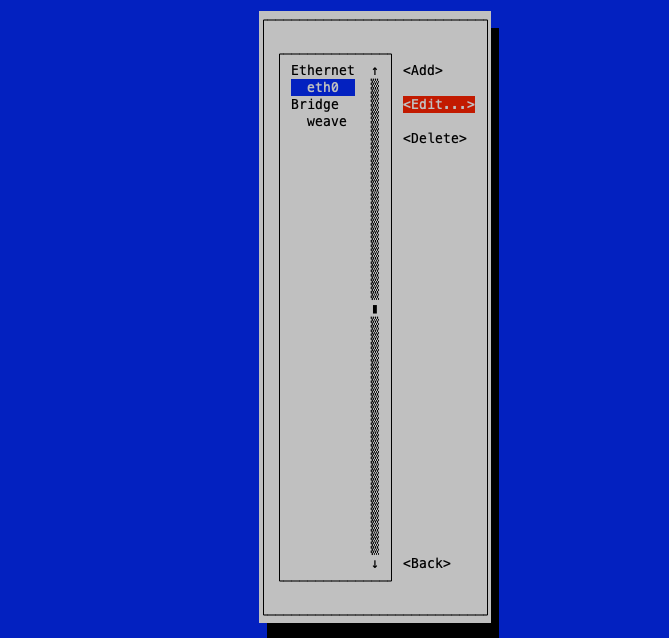

  • Next, select the interface you want to configure and hit ENTER.

Location Map

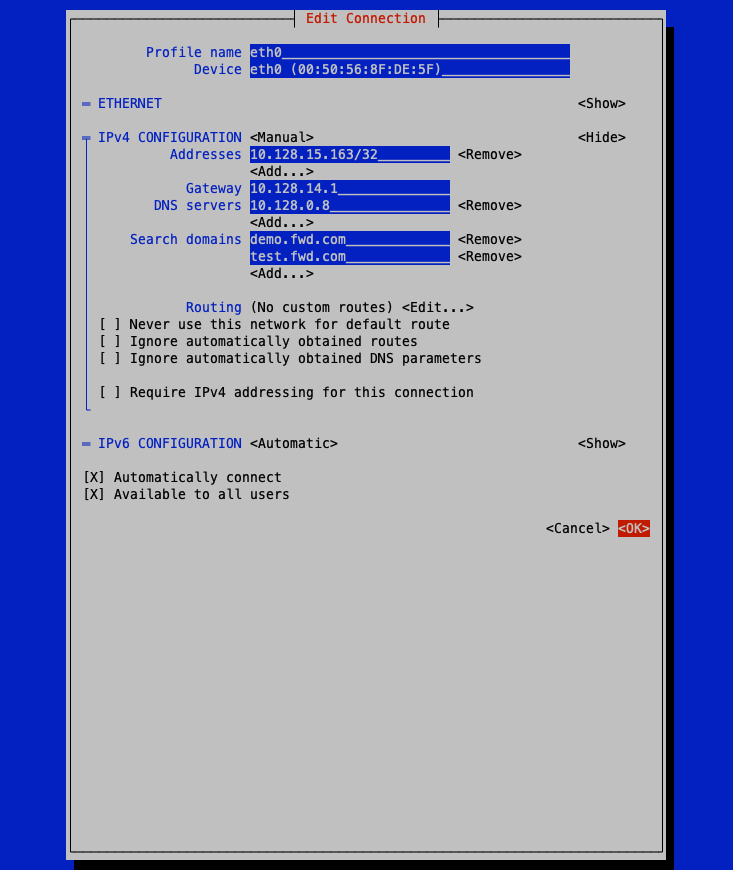

  • Key in the preferred IP address, default gateway, and DNS server as shown below and then scroll all the way down and hit ENTER on the 'OK' option.

Location Map

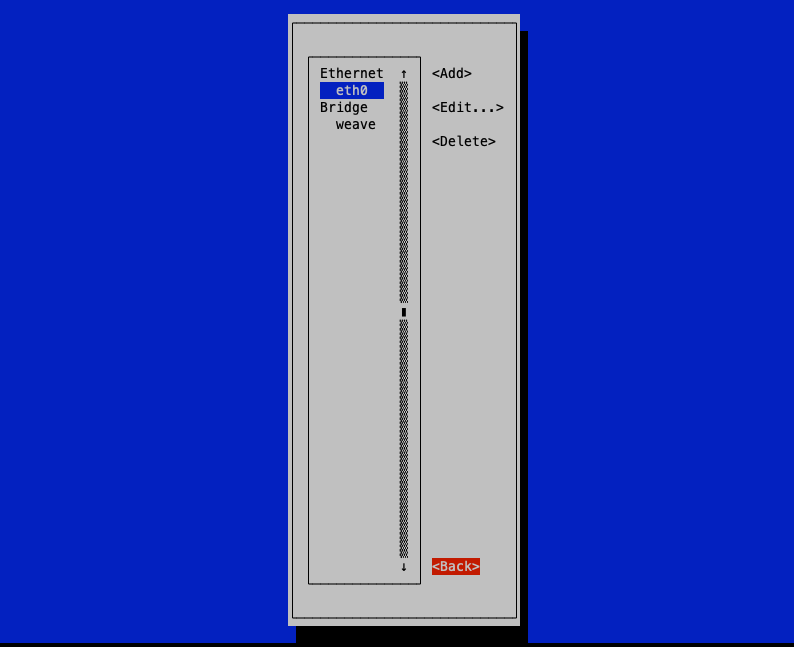

  • This takes you back to the interfaces screen as shown below. Navigate and hit on the 'Back' option.

Location Map

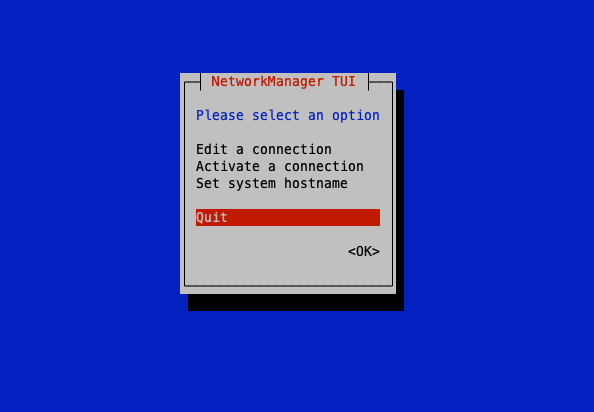

  • Press ENTER on the 'Quit' selection to exit the nmtui screen

Location Map

  • Reboot the VM using the below command so that the network configuration is updated.

    sudo reboot

  • Again, to verify that the network interface has acquired the IP address we have just configured, run the below command.

    ip addr show eth0

Update IP address in cluster configurations:​

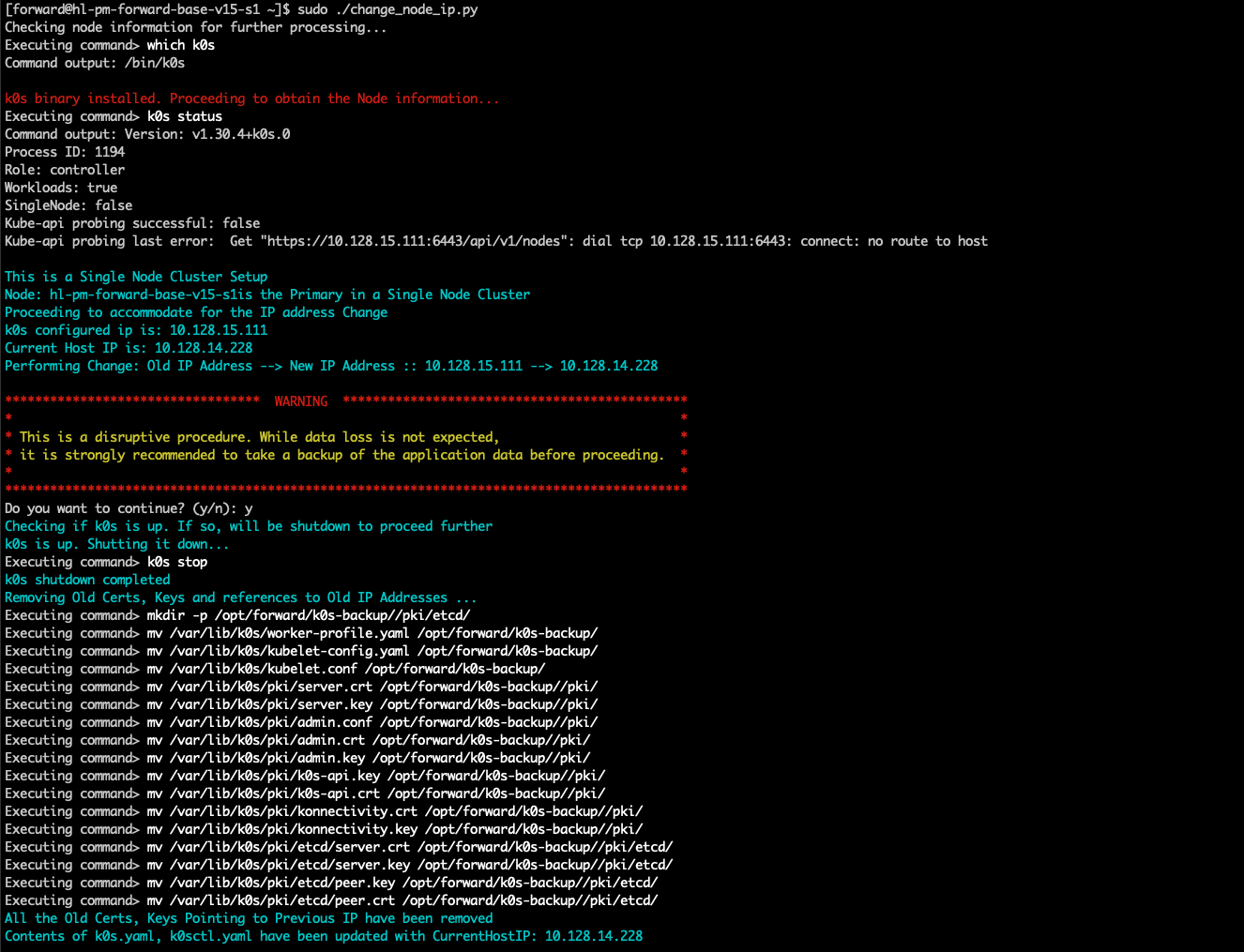

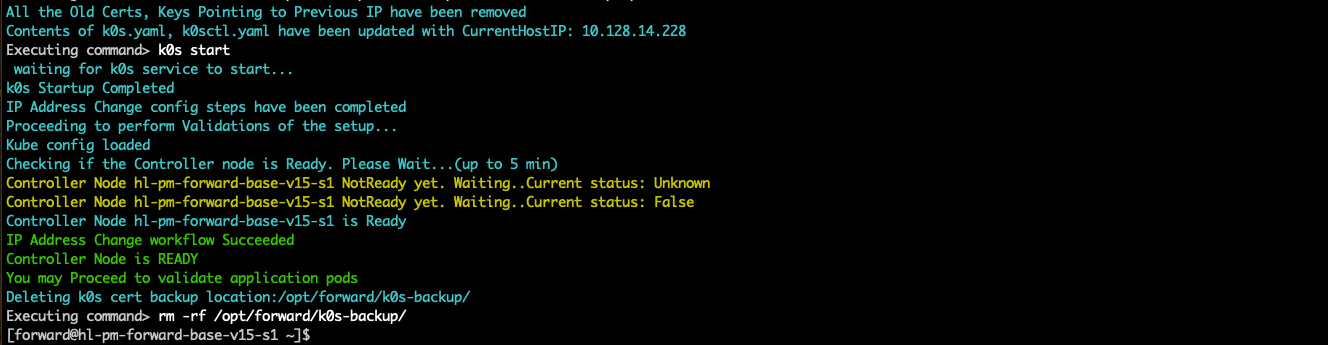

  • Execute the below script (only on single-node deployments):

    sudo ./change_node_ip.py

    Location Map Location Map

Multi-node deployments​

In multi-node deployments, the recommended method to change the IP address of a node is to remove the node from the cluster and rejoin the node after changing the IP address.

Follow these instructions to change the IP of a node:

  1. On any existing primary node execute the steps shown below to remove the node from cluster.

    fwd-cluster
    Forward Cluster> remove <hostname>

    hostname refers to hostname of the node on which we are planning to change the IP.

  2. Once the node is removed from the cluster, reset it using the below command:

    sudo ./reset_node_for_re_install.sh

  3. Change the IP of the node and reboot using instructions here

  4. On an existing primary node that is still part of the cluster execute the below steps to re-add it to the cluster:

    fwd-cluster
    Forward Cluster> add <node_ip> (primary | worker) <hostname>
    • hostname refers to the hostname of the node whose IP address changed.
    • node_ip refers to the current IP address of the node.
    • primary | worker is either primary or worker based on the appropriate node role.
