Install on GCP
Brief System Overview
Forward Appliance can be installed on one or more nodes (in this document, a node refers to a VM). You can start with a single node and later seamlessly extend the cluster to multiple nodes.
- Primary nodes: Run the cluster control plane in addition to performing modeling. The first three deployed nodes must be primary nodes.
- Worker nodes: Additional nodes added solely for scaling modeling capacity.
Deployment Recommendations
- Single node: Development, testing, and small environments.
- 3 primary nodes: Minimum for high availability (provides quorum).
- 3 primary nodes + worker nodes: Production deployments for larger networks with higher processing and availability requirements.
A multi-node deployment provides additional value and flexibility:
- Scale-out -- When the cluster spans 3 or more nodes, processing is faster and able to use multiple executors. Similarly, search throughput scales with each added node.
- High Availability (HA) -- When a cluster is installed with 3 primary nodes, both system and application services are configured to handle node-level failures automatically. As long as no more than a single node goes down at a time, the Forward application remains available without administrator involvement (although there may be a transient loss of availability while node failure is detected and components are restored on healthy nodes).
- Flexible Resource Allocation -- Users can configure resources across multiple nodes to maximize network scale, minimize snapshot processing time, or fully isolate different tasks such as processing, search, and collection.
Resource Requirements
Depending on the size and complexity of the networks to be modeled by the platform, we provide different recommendations on number of cluster nodes and hardware requirements of each of those nodes:
| Network Elements | Number of Nodes | VM Type | Disk Size per Node |
|---|---|---|---|
| 1k | 1 | c2d-highmem-32 | 400 GB (SSD Persistent) |
| 5k | 3 or more | c2d-highmem-56 | 600 GB (SSD Persistent) |
| 15k | 5 or more | c2d-highmem-56 | 800 GB (SSD Persistent) |
| 45k+ | 7 or more | c2d-highmem-112 | 2 TB (SSD Persistent) |
Larger networks require more memory to be able to model them. Total vCPUs (across nodes) determine processing speed and search throughput. At least 3 nodes are required for HA support.
Please only use one of the VM types mentioned in the above table. Other VM types are not guaranteed to work.
- * SSD storage is required.
Connectivity Requirements
Management Network
Each node requires:
- A static IP address (DHCP is supported but not recommended for production)
- Network connectivity to a DNS server, NTP server, and log server (if configured)
- Outbound HTTPS (443) for updates and license validation
- Inbound HTTPS (443) if remote collectors are used
External and Intra-node Connectivity
Each Forward Cluster deployment requires cluster-incoming, cluster-outgoing, cluster-internal, and node-internal connectivity.
It is simpler to allow unrestricted connectivity between cluster nodes. If unrestricted connectivity is not an option, the list of specific ports is noted below. The list below assumes any cluster node can be a primary or a worker node. For additional details about each port and its usage, please contact your Forward Networks representative.
| Protocol | L4 Dest Port | Service | Direction |
|---|---|---|---|
| TCP | 22 | Node Management (SSH) | external ⇒ any cluster node |
| TCP | 80 | HTTP (redirects to HTTPS) | external ⇒ any cluster node |
| TCP | 443 | Web Frontend/API | external ⇒ any cluster node |
| TCP | 30000 | File Transfer (Upload/Download) | external ⇒ any cluster node |
| TCP | 22 | Cluster Config Sync | any cluster node ⇔ any cluster node |
| TCP | 2380 | Controller State Sync | any cluster node ⇔ any cluster node |
| TCP | 6443 | Cluster API Service | any cluster node ⇔ any cluster node |
| TCP | 8132 | Cluster Control | any cluster node ⇔ any cluster node |
| TCP | 9443 | Cluster Control | any cluster node ⇔ any cluster node |
| TCP | 10250 | Cluster Status | any cluster node ⇔ any cluster node |
| UDP | 4789 | Cluster Networking | any cluster node ⇔ any cluster node |
Cluster Network
The cluster uses a dedicated internal network for inter-node communication. The following requirements apply:
- Low latency: less than 10ms RTT between nodes recommended
- Minimum 1 Gbps bandwidth; 10 Gbps recommended for production
- Two CIDR IP ranges of /22 size or larger (each node requires a /26 subnet)
- If not specified, default subnets of 100.70.0.0/21 (pods) and 100.64.0.0/21 (services) are used
- These ranges are not directly accessible or routable from outside the cluster and are used for inter-pod communication, load balancing, and service discovery
It is recommended that all ports are open on the intra-cluster network. If your corporate policy requires port restriction on intra-cluster networks, contact your Forward Networks representative for assistance.
Connectivity to Network Infrastructure
Connectivity from the Forward cluster to network devices or external services is required for snapshot collection, DNS lookups, access to SMTP server, etc. The list of specific ports is noted below. For additional details about each port and its usage, please contact your Forward Networks representative.
Forward services may migrate between cluster nodes due to high availability (HA) failover, node maintenance, resource rebalancing, or other operational reasons. To ensure uninterrupted connectivity, configure firewall rules to allow outbound traffic from all nodes in the cluster to the destinations.
| Protocol | L4 Dest Port | Service | Direction | Note |
|---|---|---|---|---|
| UDP | 53 | Name Resolution | any cluster node ⇒ DNS | |
| TCP | 22 | SSH Terminal | any cluster node ⇒ network device | |
| TCP | 23 | TELNET Terminal | any cluster node ⇒ network device | Only if required |
| TCP | 179 | BGP RR Collection | any cluster node ⇒ network device | Only if needed |
| TCP | configurable | BGP BMP Collection | any cluster node ⇒ network device | Only if needed |
| TCP | 443 | Cloud Collection | any cluster node ⇒ network device | |
| TCP | 443 | VMware vCenter | any cluster node ⇒ vCenter | |
| TCP | configurable | Email notifications | any cluster node ⇒ SMTP relay | |
| UDP | 161, 162 | SNMP Data Access | any cluster node ⇒ network device | Only if needed |
User Application Access
| Protocol | L4 Dest Port | Service | Direction |
|---|---|---|---|
| TCP | 443 | Web Interface / SAML | user workstation ⇒ cluster |
| TCP | 389 | LDAP Authentication | cluster ⇒ LDAP server |
| TCP | 514 | Remote Syslog (TCP) | cluster ⇒ syslog server |
| UDP | 514 | Remote Syslog (UDP) | cluster ⇒ syslog server |
Network Topology Recommendations
- Use separate VLANs or network segments for management and intra-cluster traffic
- Ensure all cluster nodes can communicate with each other on the cluster network
- Use anti-affinity rules to place nodes on different physical hosts
- Configure network redundancy where possible
Hostname and IP Address Requirements
Hostnames and IP addresses of cluster nodes should not change. IP addresses must be consistent across reboots, either via static allocation, or persistent allocation with a DHCP server. A DNS server must be configured and accessible from cluster nodes for hostname resolution.
Get the Installation Images
When installing on GCP, Forward will need your email or service account used to provision the VM's in order to share the image. Please contact your Forward Networks representative for that. Once you have the confirmation that images are shared with you, please visit Forward Software Central to get the image name.
Provision Google Cloud Virtual Machines
Provisioning VMs from the Google Console Website
Navigate to VM Instances and click on create new VM

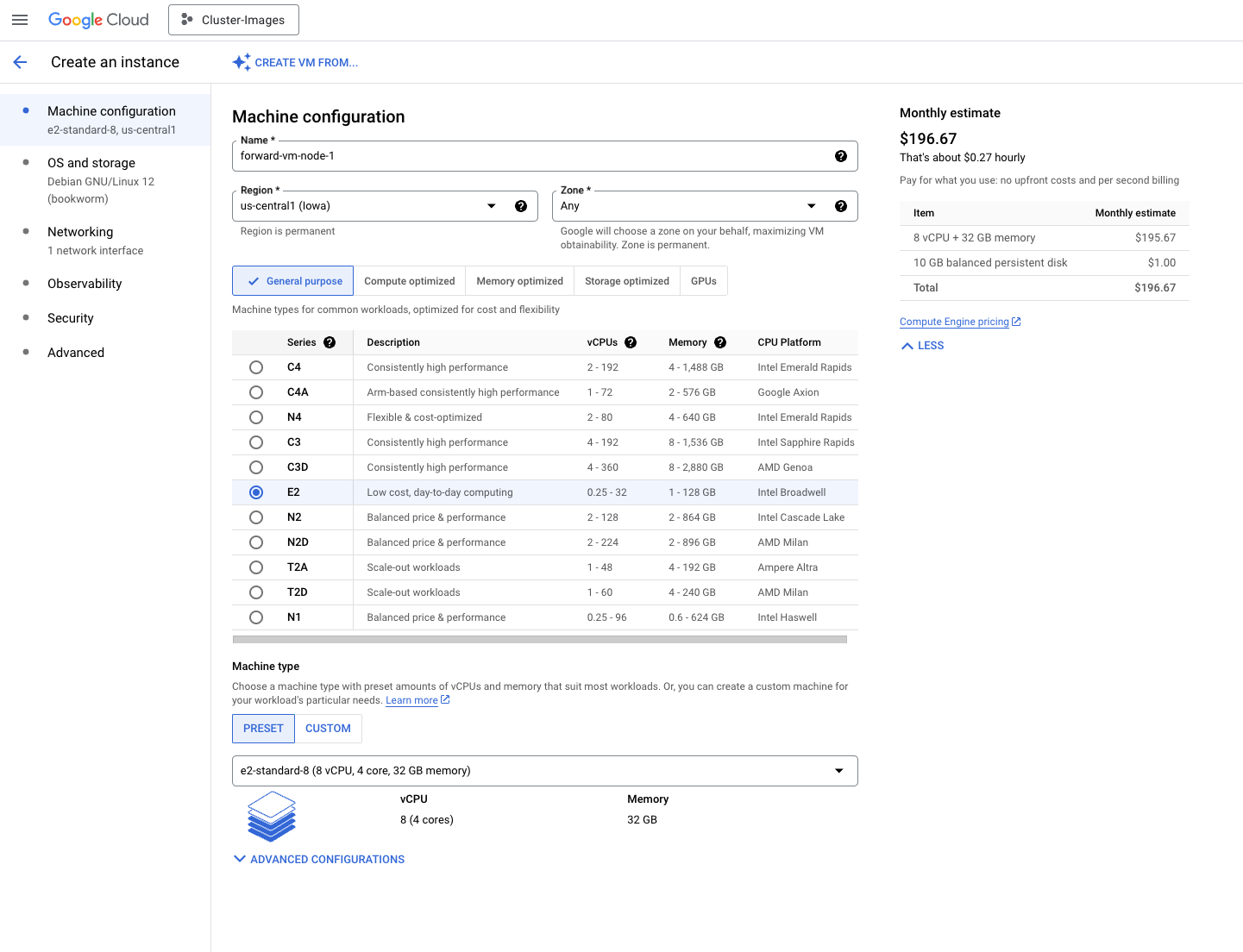

- Select the appropriate size for the node based on the table provided in
Resource Requirements.

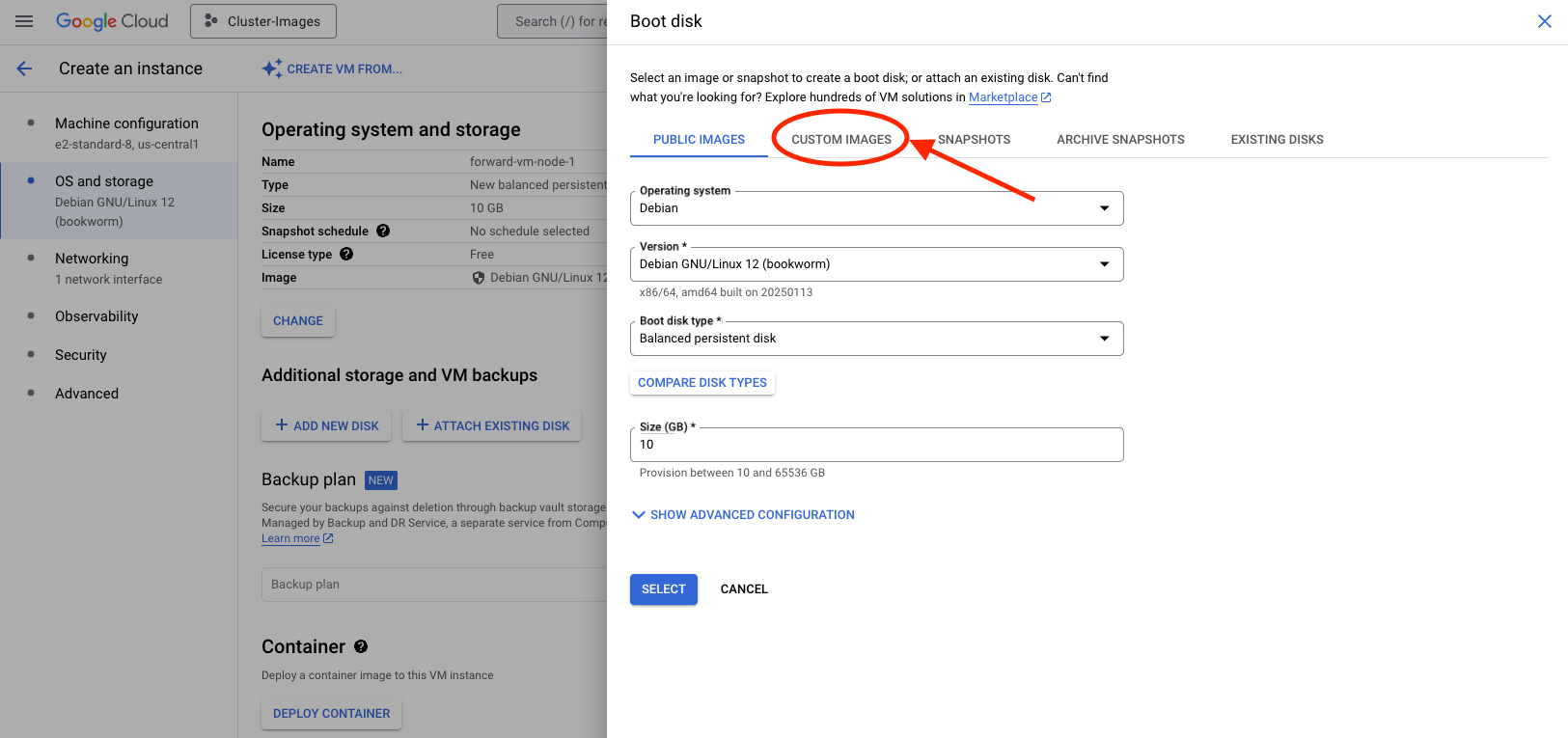

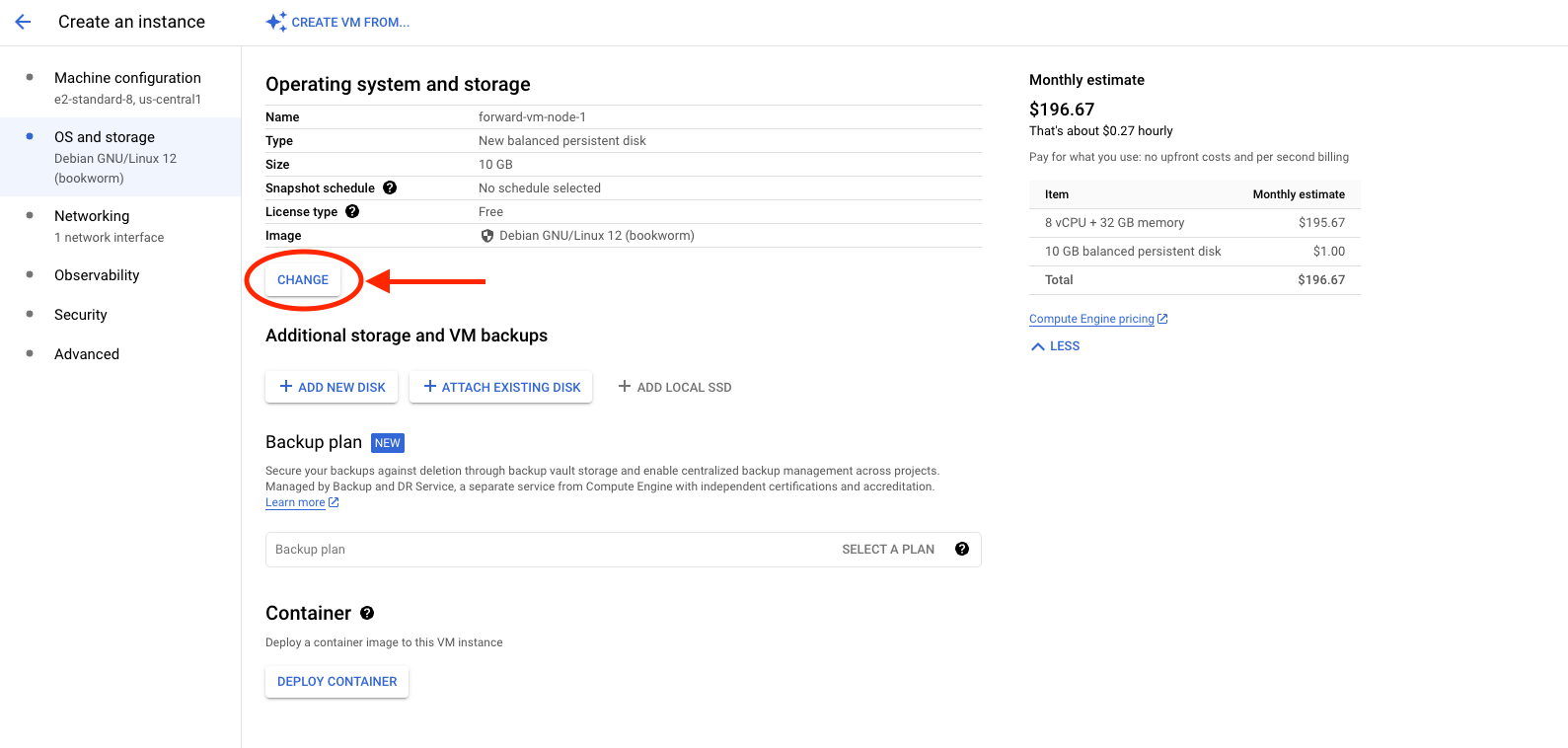

- Click on OS and Storage from the left panel and click on Change in the Operating System and storage section.
- Click on Custom Image.

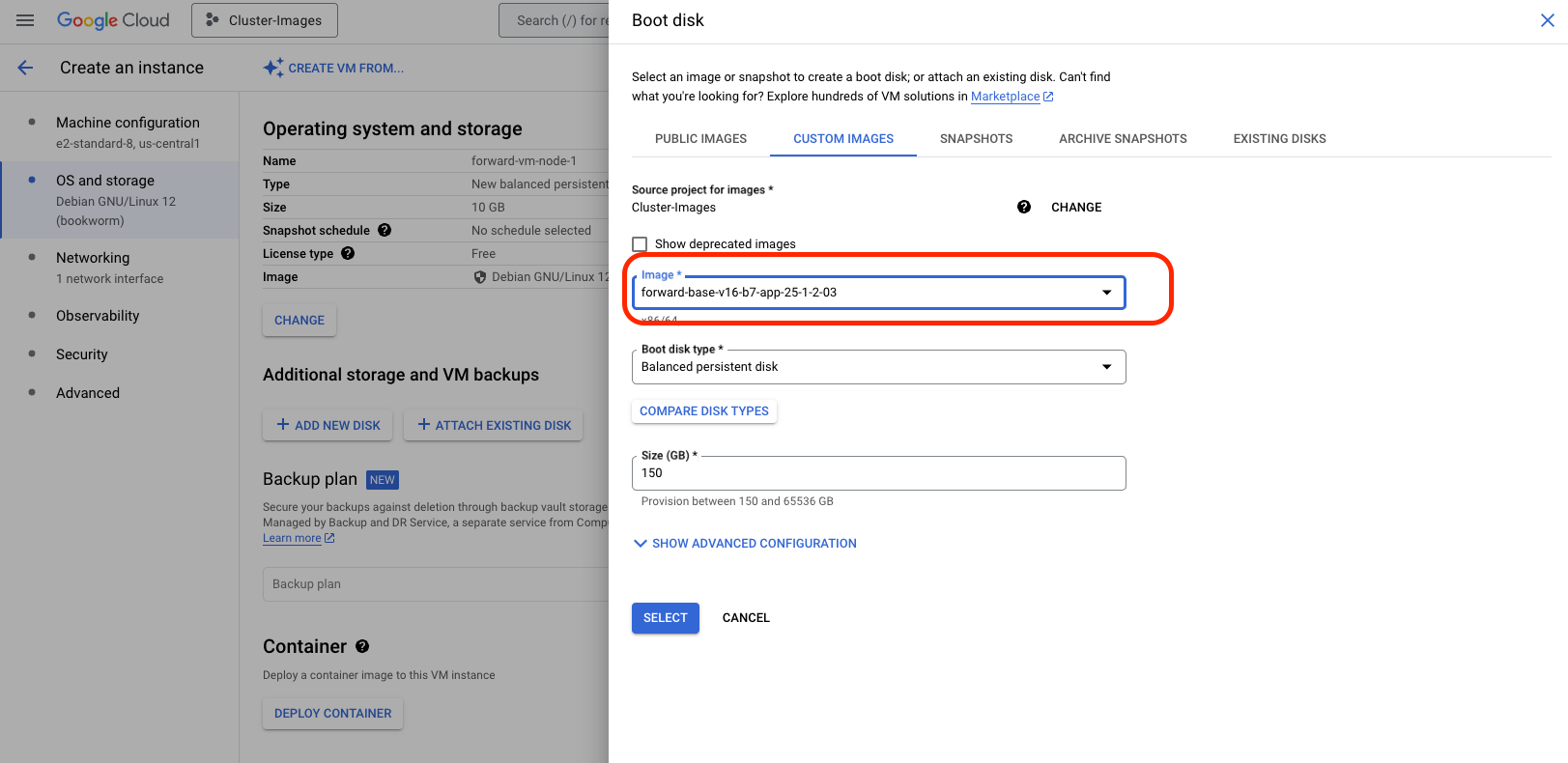

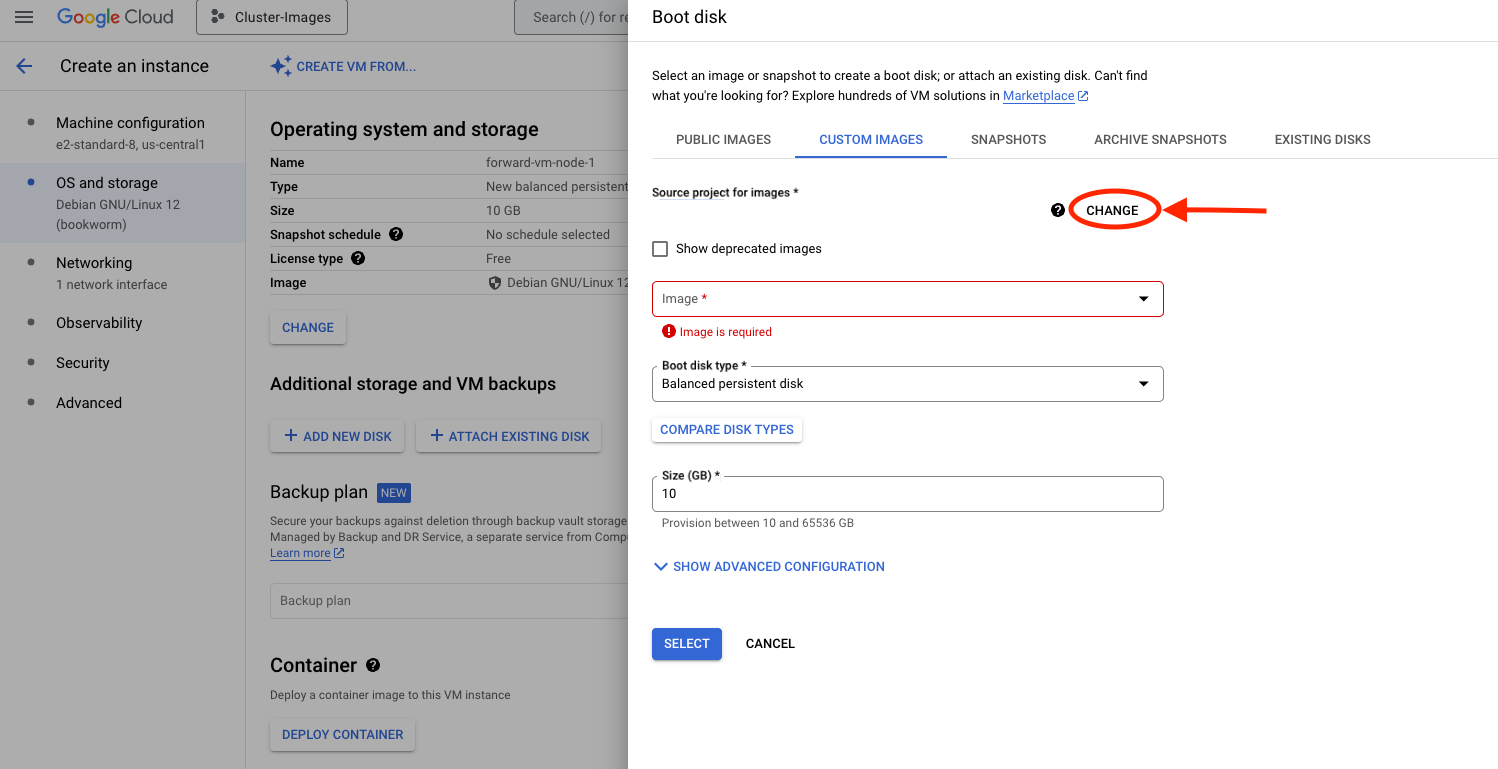

- In the Source project for images parameter click on change and select Cluster-Images
- Select the Image parameter select the desired version.

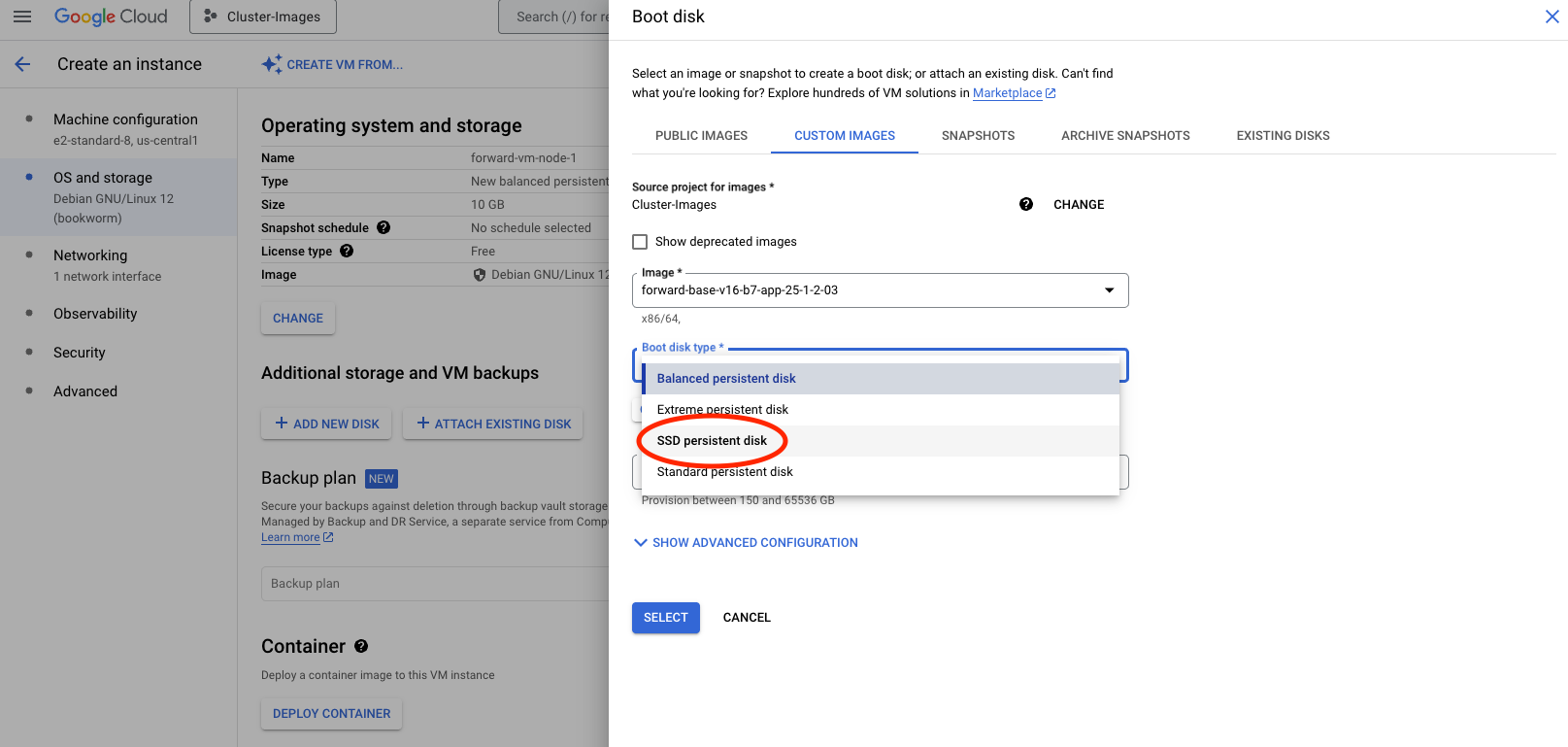

- In the Boot disk type parameter select SSD persistent disk

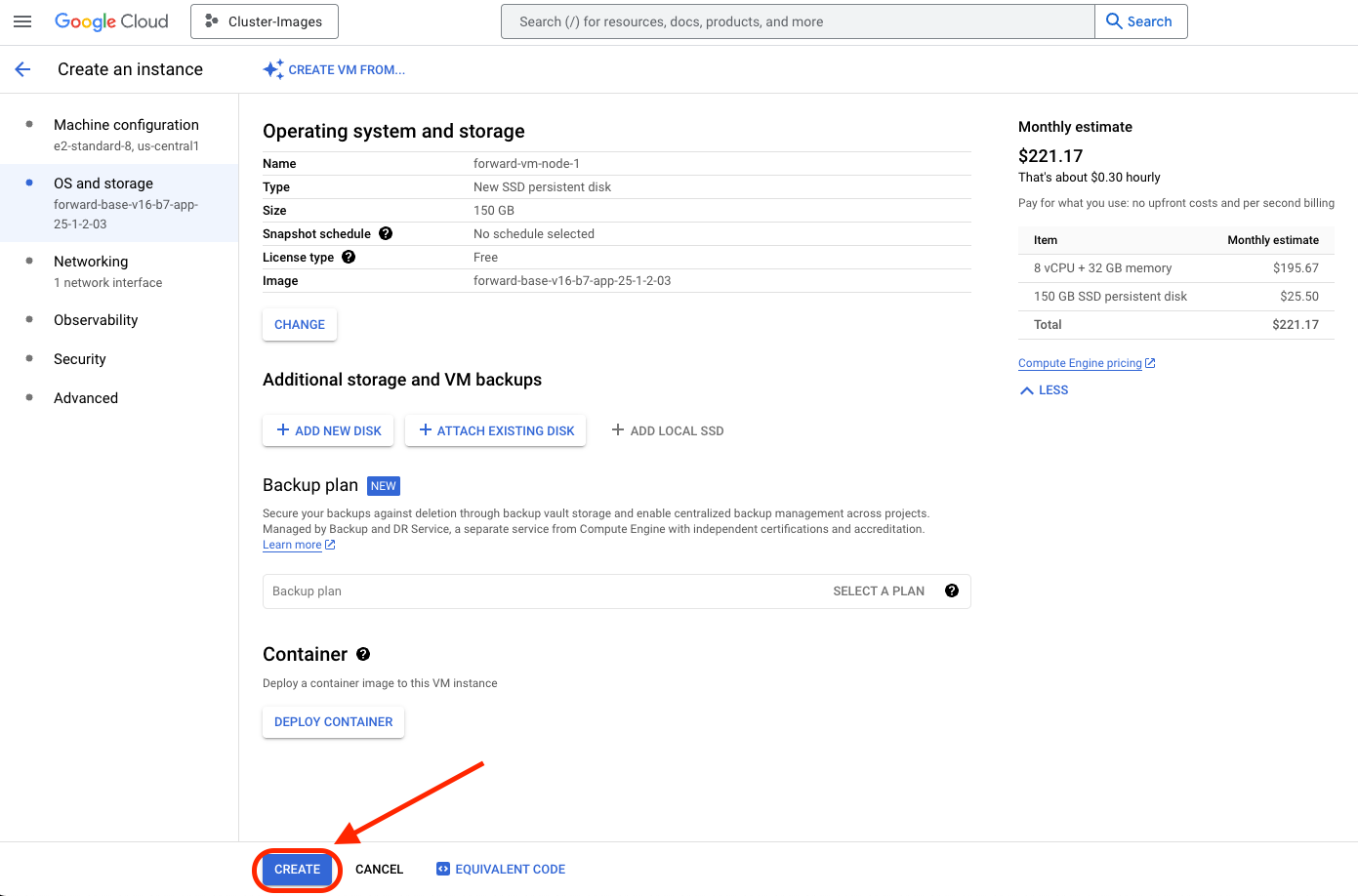

- Review the rest of the parameters if desired, and finish by clicking the Create button
- Repeat all this steps for creating the required number of nodes for the Forward Enterprise Cluster.
Provisioning VMs using the Google cloud CLI
- Requires a recent version of the Google CLI installed and configured with credentials.
- Modify the parameter section in the following script according to the requirements, then execute it:
############### Parameters ##############
export VM_BASE_NAME="forward-cluster-node"
export NODE_INSTANCES_NUM=5
export SERVICE_ACCOUNT="myserviceaccount@developer.gserviceaccount.com"
export IMAGE_VERSION="forward-base-v16-b7-app-25-1-2-03"
export DISK_SIZE_GB=400
export MACHINE_TYPE="e2-standard-8"
export GCP_ZONE="us-west1-a"
##########################################
for id in {1..$NODE_INSTANCES_NUM}; do
gcloud compute instances create "${VM_BASE_NAME}-${id}" \
--project=cluster-images \
--zone=$GCP_ZONE \
--machine-type=$MACHINE_TYPE \
--network-interface=network-tier=PREMIUM,stack-type=IPV4_ONLY,subnet=default \
--maintenance-policy=MIGRATE \
--provisioning-model=STANDARD \
--service-account=$SERVICE_ACCOUNT \
--scopes=https://www.googleapis.com/auth/devstorage.read_only,https://www.googleapis.com/auth/logging.write,https://www.googleapis.com/auth/monitoring.write,https://www.googleapis.com/auth/service.management.readonly,https://www.googleapis.com/auth/servicecontrol,https://www.googleapis.com/auth/trace.append \
--create-disk=auto-delete=yes,boot=yes,device-name="${VM_BASE_NAME}-${id}",image="projects/cluster-images/global/images/${IMAGE_VERSION}",mode=rw,size=${DISK_SIZE_GB},type=pd-ssd \
--labels=goog-ec-src=vm_add-gcloud \
--reservation-affinity=any
done
Installation
Console Access
Open the VM console from your virtualization platform, or open a terminal and SSH into the VM using the IP address configured during provisioning.
Log in with the default credentials:
- Username:
forward - Password:
changeme
Change the default password before using the appliance in production via Security > SSH access in the TUI.
After login, the system displays the Forward Cluster Text User Interface (TUI).
Forward Cluster TUI
The TUI provides a menu-driven interface for all node, cluster, and application management. Use the arrow keys to navigate between menu items, Tab to move between interface elements, and Enter to select. Mouse navigation may also be available depending on your terminal. Press Esc to go back or cancel.
TUI Main Menu:
| Menu Item | Description |
|---|---|
| Node | View and configure the local node |
| Cluster | Configure and manage the cluster |
| Forward Enterprise | Install and manage Forward Enterprise |
| Security | Password, SSH keys, bastion host, syslog, TLS |
| Troubleshooting | View pods, logs, diagnostics, and connectivity tools |
Press D to toggle between dark and light display modes. Press Q, F10, or Ctrl+C to terminate the SSH connection.
For the full TUI layout and navigation reference, see the TUI Reference.
Node Configuration
- Select Node from the main menu.
- Verify the node Name and Management IP are configured correctly.
Multiple DNS servers can be specified as comma-separated values.
Cluster Configuration and Roll-out
Recommended node types based on the cluster size
2-node clusters are not supported. The number of primary nodes in a multi-node cluster must be 3 to ensure high availability.
| Total Number of Nodes in the Cluster | Primaries | Workers |
|---|---|---|
| 1 | 1 | 0 |
| 2 (not supported) | -- | -- |
| 3 | 3 | 0 |
| 4 | 3 | 1 |
| 5 | 3 | 2 |
| n (6 or more) | 3 | n-3 |
Configure Cluster Network
- Select Cluster from the main menu.
- Select Set CIDRs to configure the intra-cluster network ranges.
Configure the following:
- Service CIDR: IP range for intra-cluster services (default:
100.64.0.0/21) - Pod CIDR: IP range for intra-cluster pod addressing (default:
100.70.0.0/21)
Once the cluster is installed, the Pod and Service CIDRs cannot be changed. Ensure they are correct before applying the cluster configuration.
Ensure that the pod/service CIDR range is /22 or larger, as each node in the cluster requires a /26 subnet. The configured ranges must not overlap with your management network or each other.
If the default ranges conflict with your existing network, change them before proceeding.
Add Nodes to the Cluster
- Select Cluster > Install/Manage from the menu.
- Enter the current node's IP address and hostname to add it to the cluster.
- For each additional node, enter its IP address and hostname and select Add.
For a single-node deployment, add the node's management IP address and hostname as the only cluster member, then select Apply. No additional nodes are needed.
Ensure that all hostnames used in the cluster are resolvable via DNS. Each hostname must resolve to the correct IP address from all cluster nodes.
The first three nodes must be added as primary nodes for availability. Additional nodes beyond three are added as workers.
Install Cluster
Select Apply to begin cluster roll-out, or Reset to return to the configuration step.
The cluster roll-out combines the selected nodes into a unified cluster. This process takes 3--5 minutes.
Configure NTP
After the cluster is installed, configure NTP:
- Select Cluster > Set NTP from the main menu.
- Enter the NTP server address. The change is added to staging.
- Select Apply to apply the NTP configuration.
Verify on the right panel of the TUI that the cluster installed successfully and all nodes were added.
Install Forward Enterprise
- Select Forward Enterprise > Install/Upgrade from the main menu.
- The Forward Enterprise installation package included with the appliance is shown. Proceed to install.
To install a newer version of Forward Enterprise, obtain the package from Forward Software Central and transfer it to any appliance node using one of these methods:
- Upload via browser: Select Upload New Package in the TUI, then navigate to
https://<node-ip>:30000/upload(this service is available temporarily when an upload is initiated from the TUI) - SCP: Copy the package file directly to the node via
scp
Then select the uploaded package in the Forward Enterprise > Install/Upgrade menu to install it.
Browser Access
Before accessing the application with a web browser, please note the following:
Upon the first login, the system will ask to change the password. Be ready to store it in a safe place. The user will be able to configure external authentication mechanisms like LDAP, SSO and TACACS after the first login.
It is now time to access the browser and log into the Forward UI using the following default credentials (the system will ask to change the password):
- username:
admin - password:
forward
Set the TLS Certificate
By default, the server uses a TLS certificate provided by Forward Networks. If your organization requires a custom trusted certificate, you may upload your own.
The uploaded certificate must meet the format and encoding requirements described below. Certificates that do not meet these requirements will fail to import.
If Forward Enterprise is unavailable, the TLS certificate can be reset via the TUI at Security > Reset tls.
Certificate Requirements
Your certificate must:
- Be in PEM format
- Use UTF-8 encoding
- Be readable by OpenSSL
- Include the full certificate chain
- Match the provided private key
If your certificate generation tool exports files in a different encoding or format, Forward Enterprise will not be able to import them.
Supported Format
The certificate must be PEM-encoded (Base64 text format) and contain standard headers:
-----BEGIN CERTIFICATE-----
(base64 content)
-----END CERTIFICATE-----
The private key must also be PEM formatted:
-----BEGIN PRIVATE KEY-----
or
-----BEGIN RSA PRIVATE KEY-----
Forward Enterprise relies on OpenSSL for certificate validation. Any certificate format that OpenSSL cannot load is not supported.
File Encoding Requirement
The certificate file must use UTF-8 encoding.
Some certificate tools export files as UTF-16LE or other encodings. These encodings are not supported and will cause import failures.
If OpenSSL cannot load the certificate, the file encoding may not be compatible.
Certificate Chain Requirement
The uploaded certificate must include the complete certificate chain.
Most CA-issued certificates are part of a chain that includes:
- The server certificate
- One or more intermediate certificates
- (Optionally) the root certificate
Forward Enterprise expects the full chain to be present in the uploaded certificate file.
If intermediate certificates are missing, clients may experience trust errors.
Certificates in .crt format can be bundled into a single .pem file that contains the full chain. The combined file
must contain all certificates in PEM format.
File Extensions
Common extensions include:
.pem.crt.cer.key
The file extension itself does not determine validity.
What matters is:
- PEM format
- UTF-8 encoding
- Complete certificate chain
- Private key match
Optional: Verify Certificate with OpenSSL
You may optionally validate your certificate before uploading.
To verify that OpenSSL can read the certificate:
openssl x509 -noout -text -in your-cert.pem
To confirm that the certificate matches the private key:
openssl rsa -noout -modulus -in your.key | openssl md5
openssl x509 -noout -modulus -in your-cert.pem | openssl md5
The MD5 values must match.
To verify a certificate chain:
openssl verify -CAfile root.crt -untrusted intermediate.crt server.crt
If OpenSSL reports that it cannot load the certificate, the format or encoding is not supported.
Pre-Upload Checklist
Before uploading the certificate to Forward Enterprise, confirm:
- Certificate is PEM formatted (contains BEGIN/END CERTIFICATE)
- File encoding is UTF-8
- Certificate can be loaded by OpenSSL
- Certificate includes the full chain (server + intermediates)
- Private key matches the certificate
If any of the above conditions are not met, the import process will fail.
The server will be restarted after the certificate is uploaded, and may be unavailable for up to 5 minutes.
Optional: Set up load balancing
If you have installed 3 primary nodes, the control plane of the cluster is already running in HA mode. Assuming the IP address of these nodes are primary1-ip, primary2-ip and primary3-ip, you can reach the application through any of the following addresses:
https://primary1-ip/
https://primary2-ip/
https://primary3-ip/
However, if users use one of these addresses and that node is down, they will see failures. To have proper HA, it is better to use a load balancing option which has health checks. To do that you need a reverse proxy which forwards requests to port 443 to any of the healthy nodes in the cluster.
The following methods can be used to perform health checks:
- TCP health checks on port
443. - HTTP health checks that issue
GET /pingand expect 200 status code.
Activate the License
After each VM is running, log in to the deployed Forward Enterprise system as an Org Admin and navigate to Settings → System → License. You can obtain the required Instance ID either by clicking Deployment ID in the top-right corner of the License page, or by selecting Manage device licenses and clicking Add new license, where the Instance ID is also displayed.
Return to Software Central, click Add Deployment ID, paste the Instance ID into the Deployment ID field, and click Activate to generate the license.
Back in the deployed system, use Manage device licenses → Add new license to paste the generated license key and activate it.
Update CVE Database
For accurate vulnerability detection, the CVE database should be updated after the initial installation. The database included with each Forward Enterprise release may not contain the latest published vulnerabilities.
Scheduled updates (recommended): Starting with release 26.2, you can enable automatic hourly CVE database updates. Navigate to Settings > System > Software Central and enable the Enable hourly updates toggle. This requires network access to Forward Software Central.
Manual updates: Download the latest CVE database from the CVE Update page and upload it via Security > Vulnerability > Update CVE database.
For full details on all update methods, including REST API automation, see the CVE Database Update documentation.
